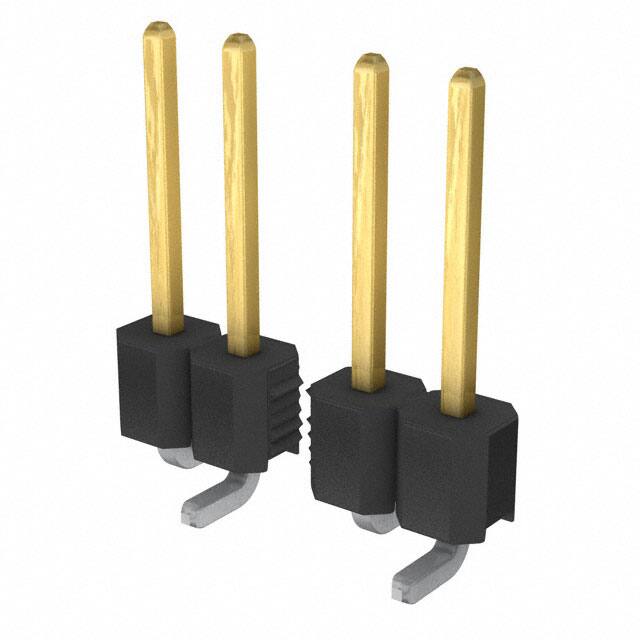

0878980765

Specifications

Terminal

Solder

Contact Finish Thickness Mating

30.0μin 0.76μm

Housing Color

Black

Sıra Sayısı

1

Montaj

Surface Mount

Mixed Contacts

NO

Akım Değeri

3A

Uzunluk

17.78mm

Pitch Mating

0.100 2.54mm

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Contact Finish Thickness Post

78.7μin 2.00μm

JESD-609 Kodu

e3

Number Of Circuits

6

Depth

4.8mm

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Contact Finish Post

Tin

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.320 8.13mm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Mil Conformance

NO

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Insulation Height

0.098 2.50mm

Montaj Tipi

Surface Mount

Din Conformance

NO

Shrouding

Unshrouded

Parça Durumu

Active

Iec Conformance

NO

Housing Material

Nylon

Orientation

Vertical

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

C-Grid SL 87898

Fastening Type

Push-Pull
