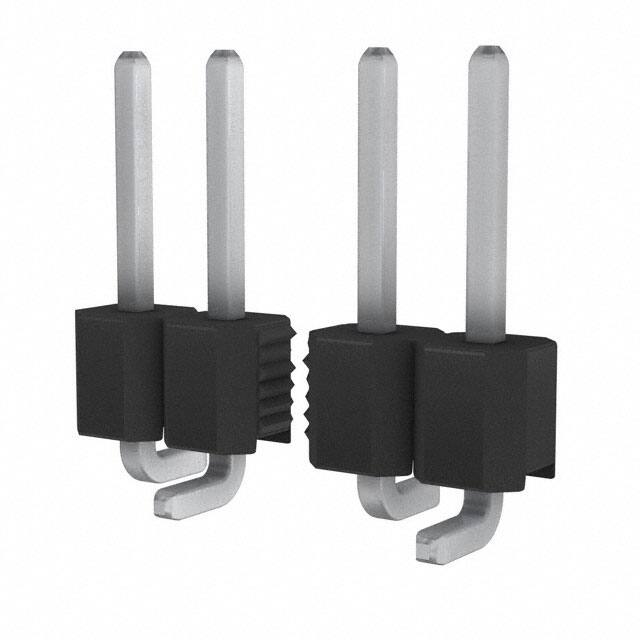

0878980626

Specifications

Fastening Type

Push-Pull

Seri

C-Grid SL 87898

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header, Breakaway

Contact Shape

Square

Pozisyon Sayısı

6

Housing Material

Nylon

Orientation

Vertical

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Insulation Height

0.098 2.50mm

Montaj Tipi

Surface Mount

Shrouding

Unshrouded

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Maks. Çalışma Sıcaklığı

105°C

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Contact Type

Male Pin

Depth

4.8mm

Number Of Circuits

5

Contact Finish Thickness Post

100.0μin 2.54μm

Kurşunsuz Kodu

yes

Contact Finish Mating

Tin

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.230 5.84mm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Uzunluk

15.24mm

Akım Değeri

3A

Pitch Mating

0.100 2.54mm

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Terminal

Solder

Contact Finish Thickness Mating

100.0μin 2.54μm

Housing Color

Black

Montaj

Surface Mount

Sıra Sayısı

1
