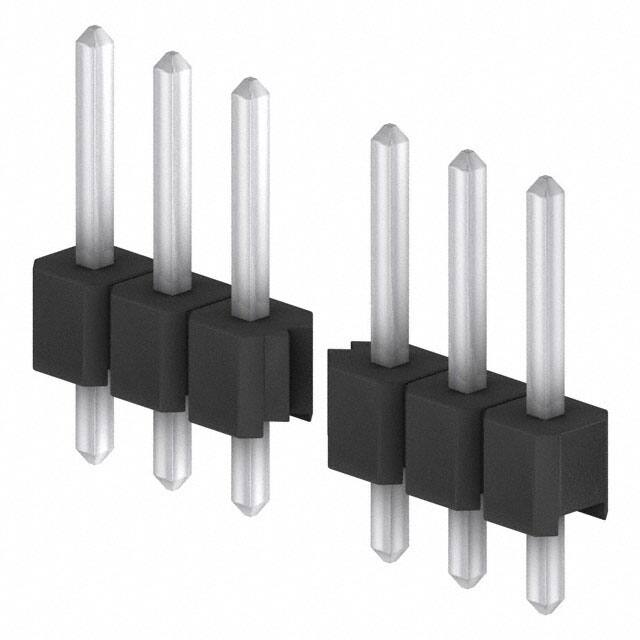

0878914006

Specifications

Din Conformance

NO

Shrouding

Unshrouded

Parça Durumu

Active

Montaj Tipi

Through Hole

Insulation Height

0.098 2.50mm

Material Flammability Rating

UL94 V-0

Contact Length Post

0.117 2.97mm

Terminal Adımı

2.54mm

Filter Feature

NO

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header, Breakaway

Seri

KK 87891

Overall Contact Length

0.445 11.30mm

Fastening Type

Push-Pull

Number Of Contacts

40

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Nylon

Orientation

Vertical

Iec Conformance

NO

Applications

Automotive, General Purpose, Medical, Telecommunications

Pitch Mating

0.100 2.54mm

Akım Değeri

3A

Uzunluk

101.6mm

Sıra Sayısı

1

Montaj

Through Hole

Mixed Contacts

NO

Housing Color

Black

Terminal

Solder

Contact Finish Thickness Mating

100.0μin 2.54μm

Contact Type

Male Pin

Mil Conformance

NO

Fabrika Tedarik Süresi

13 Weeks

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.230 5.84mm

RoHS Durumu

ROHS3 Compliant
