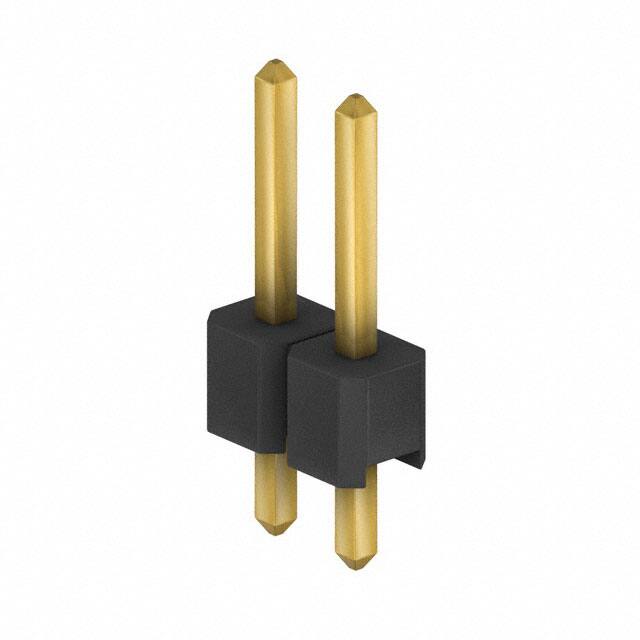

0878910204

Specifications

Applications

Automotive, General Purpose, Medical, Telecommunications

Pitch Mating

0.100 2.54mm

Akım Değeri

3A

Uzunluk

5.08mm

Contact Plating

Gold

Sıra Sayısı

1

Montaj

Through Hole

Housing Color

Black

Terminal

Solder

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Type

Male Pin

Fabrika Tedarik Süresi

12 Weeks

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.230 5.84mm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tray

Contact Finish Mating

Gold

Contact Finish Post

Tin

Insulation Color

Black

Number Of Circuits

1

Contact Finish Thickness Post

74.8μin 1.90μm

Depth

2.51mm

Shrouding

Unshrouded

Parça Durumu

Active

Pitch

2.54mm

Montaj Tipi

Through Hole

Insulation Height

0.098 2.50mm

Material Flammability Rating

UL94 V-0

Contact Length Post

0.117 2.97mm

Pozisyon Sayısı

2

Renk

Black

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header, Breakaway

Seri

KK 87891

Overall Contact Length

0.445 11.30mm

Fastening Type

Push-Pull
