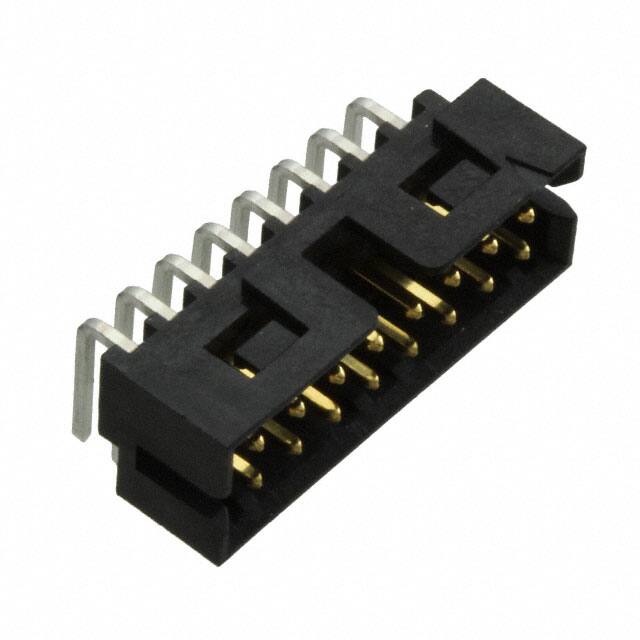

0878331621

Specifications

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.248 6.30mm

Contact Length Post

0.085 2.16mm

Özellikler

Keying Slot

Contact Shape

Square

Connector Type

Header

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Right Angle

Housing Material

Nylon

Sıra Sayısı

2

Housing Color

Black

Terminal

Solder

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Type

Male Pin

Glow Wire Compliant

Non-compliant

Fabrika Tedarik Süresi

10 Weeks

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.141 3.60mm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Insulation Color

Black

Depth

8.4mm

Number Of Circuits

16

Parça Durumu

Active

Pitch

2mm

Nominal Gerilim

125V

Mating Post Length

3.6mm

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

16

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Fastening Type

Latch Holder

Seri

Milli-Grid 87833

Number Of Contacts

16

Row Spacing Mating

0.079 (2.00mm)

Applications

Automotive, General Purpose, Telecommunications

Pitch Mating

0.079 2.00mm

Uzunluk

18.65mm

Akım Değeri

2A
