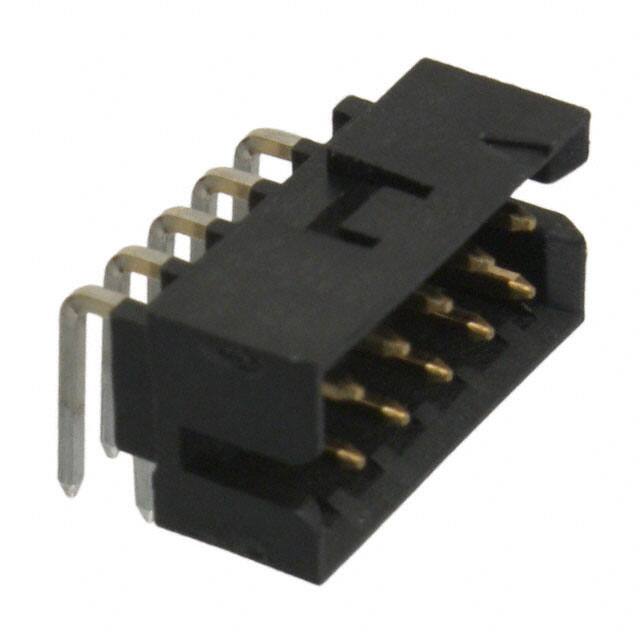

0878331033

Specifications

Contact Type

Male Pin

Fabrika Tedarik Süresi

15 Weeks

Contact Materials

Phosphor Bronze

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.141 3.60mm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Contact Finish Mating

Gold

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Depth

8.4mm

Contact Finish Thickness Post

74.8μin 1.90μm

Applications

Automotive, General Purpose, Telecommunications

Pitch Mating

0.079 2.00mm

Uzunluk

12.65mm

Akım Değeri

2A

Montaj

Through Hole

Sıra Sayısı

2

Housing Color

Black

Contact Finish Thickness Mating

15.0μin 0.38μm

Terminal

Solder

Özellikler

Keying Slot

Connector Type

Header

Insulation Materials

Polyamide (PA46), Nylon 4/6, Glass Filled

Contact Shape

Square

Fastening Type

Push-Pull

Seri

Milli-Grid 87833

Number Of Contacts

10

Row Spacing Mating

0.079 (2.00mm)

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Right Angle

Housing Material

Nylon

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.248 6.30mm

Material Flammability Rating

UL94 V-0
