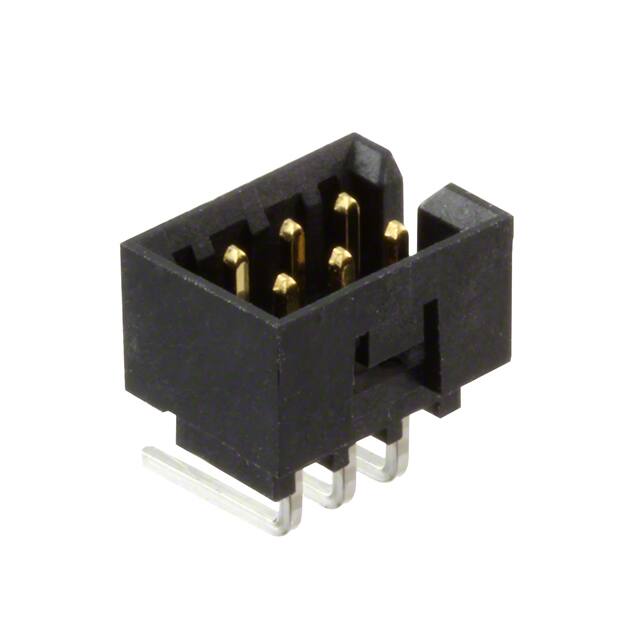

0878330633

Specifications

Contact Shape

Square

Connector Type

Header

Housing Material

Nylon

Orientation

Right Angle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.248 6.30mm

Shrouding

Shrouded - 4 Wall

Mating Contact Pitch

0.079 inch

Contact Length Post

0.085 2.16mm

Reference Standard

UL, CSA

Fabrika Tedarik Süresi

11 Weeks

Dielectric Withstanding Voltage

1000VAC V

Contact Type

Male Pin

Mil Conformance

NO

Kurşunsuz Kodu

yes

Depth

8.4mm

Contact Lengthmating

0.141 3.60mm

Min. Çalışma Sıcaklığı

-55°C

Plating Thickness

15μin

Contact Finish Post

Tin

Contact Finish Mating

Gold

Housing Color

Black

Contact Finish Thickness Mating

15.0μin 0.38μm

Terminal

Solder

Insulation Resistance

1000000000Ohm

Sıra Sayısı

2

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Seri

Milli-Grid 87833

Fastening Type

Push-Pull

Rated Current Signal

2A

Filter Feature

NO

Number Of Contacts

6

Row Spacing Mating

0.079 (2.00mm)

Durability

100 Cycles

Parça Durumu

Active

Din Conformance

NO

Material Flammability Rating

UL94 V-0
