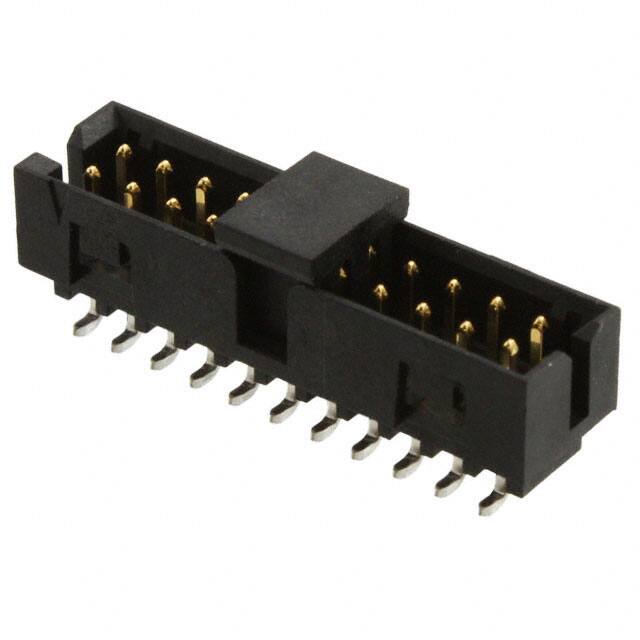

0878326023

Specifications

Pitch Mating

0.079 2.00mm

Applications

Automotive, General Purpose, Telecommunications

Akım Değeri

2A

Sıra Sayısı

2

Montaj

Surface Mount

Insulation Resistance

1000000000Ohm

Contact Finish Thickness Mating

30.0μin 0.76μm

Terminal

Solder

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

1000VAC V

Contact Type

Male Pin

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

12 Weeks

Contact Finish Mating

Gold

Contact Finish Post

Tin

Plating Thickness

30μin

Ambalaj

Tape & Reel (TR)

RoHS Durumu

ROHS3 Compliant

Contact Lengthmating

0.141 3.60mm

Contact Finish Thickness Post

74.8μin 1.90μm

Insulation Color

Black

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Durability

100 Cycles

Insulation Height

0.252 6.40mm

Montaj Tipi

Surface Mount

Operating Temperature Min

-55°C

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Polarization Key

POLARIZED HOUSING

Rated Current Signal

2A

Özellikler

Board Guide, Keying Slot, Pick and Place

Seri

Milli-Grid 87832

Fastening Type

Latch Holder

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled
