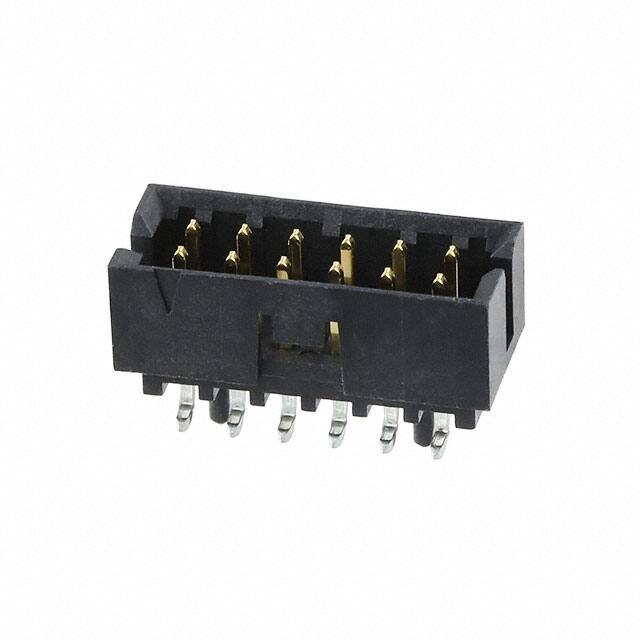

0878325523

Specifications

Contact Finish Mating

Gold

Contact Finish Post

Tin

Plating Thickness

30μin

Contact Lengthmating

0.141 3.60mm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tape & Reel (TR)

Board Mounting Option

PEG

Number Of Pcb Rows

2

Contact Finish Thickness Post

74.8μin 1.90μm

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

Insulation Color

Black

REACH Uyumluluk Kodu

unknown

Contact Type

Male Pin

Dielectric Withstanding Voltage

1400VAC V

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Insulation Resistance

1000000000Ohm

Terminal

Solder

Contact Finish Thickness Mating

30.0μin 0.76μm

Reliability

COMMERCIAL

Pitch Mating

0.079 2.00mm

Applications

Automotive, General Purpose, Telecommunications

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.079 (2.00mm)

Operating Temperature Max

105°C

Mounting Option1

LOCKING

Total Number Of Contacts

12

Özellikler

Board Guide, Keying Slot, Pick and Place

Pozisyon Sayısı

12

Rated Current Signal

2A

Fastening Type

Push-Pull

Seri

Milli-Grid 87832

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Contact Shape

Square

Material Flammability Rating

UL94 V-0
