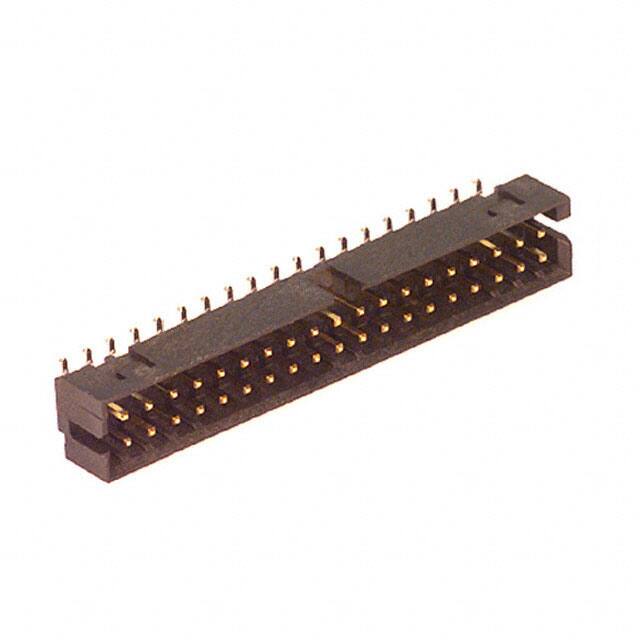

0878323820

Specifications

Insulation Height

0.252 6.40mm

Montaj Tipi

Surface Mount

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Seri

Milli-Grid 87832

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Özellikler

Board Guide, Keying Slot

Pozisyon Sayısı

38

Orientation

Vertical

Housing Material

Nylon

Row Spacing Mating

0.079 (2.00mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Uzunluk

40.65mm

Akım Değeri

2A

Pitch Mating

0.079 2.00mm

Applications

Automotive, General Purpose, Telecommunications

Terminal

Solder

Contact Finish Thickness Mating

15.0μin 0.38μm

Housing Color

Black

Montaj

Surface Mount

Sıra Sayısı

2

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All

Maks. Çalışma Sıcaklığı

105°C

Contact Type

Male Pin

Depth

6.3mm

Number Of Circuits

36

Contact Finish Thickness Post

74.8μin 1.90μm

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

Contact Finish Mating

Gold

Ambalaj

Tube

RoHS Durumu

ROHS3 Compliant

Contact Lengthmating

0.141 3.60mm

Radyasyon Dayanımı

No
