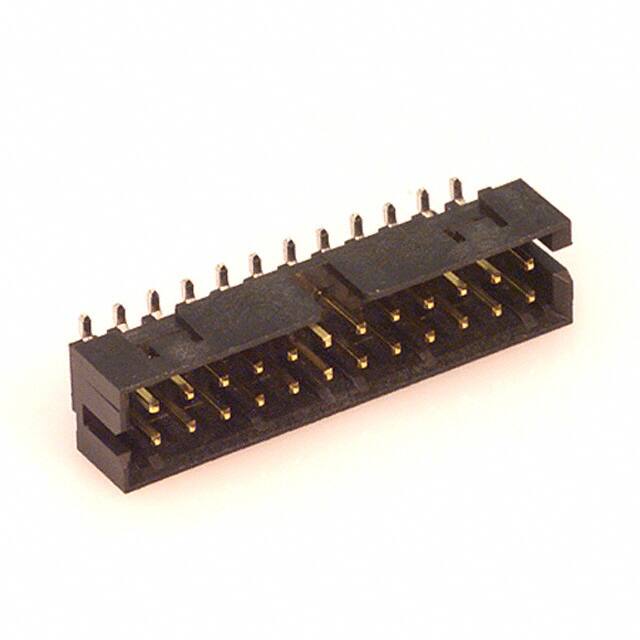

0878322422

Specifications

Row Spacing Mating

0.079 (2.00mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Number Of Contacts

24

Iec Conformance

NO

Orientation

Vertical

Housing Material

Nylon

Filter Feature

NO

Özellikler

Board Guide, Keying Slot, Pick and Place

Seri

Milli-Grid 87832

Fastening Type

Latch Holder

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Insulation Height

0.252 6.40mm

Montaj Tipi

Surface Mount

Contact Finish Post

Tin

Contact Finish Mating

Gold

Ambalaj

Tube

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

Contact Lengthmating

0.141 3.60mm

Radyasyon Dayanımı

No

Min. Çalışma Sıcaklığı

-55°C

JESD-609 Kodu

e3

Contact Finish Thickness Post

74.8μin 1.90μm

Depth

6.3mm

Kurşunsuz Kodu

yes

Mil Conformance

NO

Contact Type

Male Pin

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Mixed Contacts

NO
