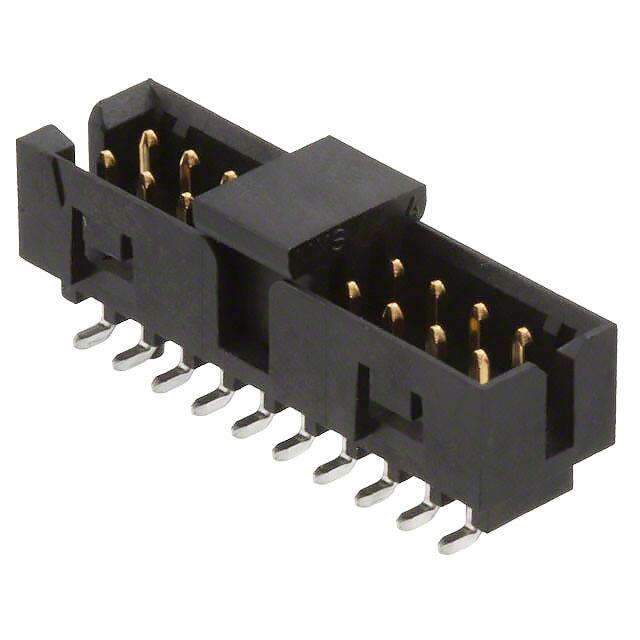

0878322023

Specifications

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Fastening Type

Latch Holder

Seri

Milli-Grid 87832

Rated Current Signal

2A

Number Of Contacts

20

Row Spacing Mating

0.079 (2.00mm)

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Contact Materials

Phosphor Bronze

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Number Of Conductors

ONE

Contact Finish Thickness Post

74.8μin 1.90μm

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube

Uzunluk

22.65mm

Akım Değeri

2A

Applications

Automotive, General Purpose, Telecommunications

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.079 2.00mm

Reliability

COMMERCIAL

Montaj

Surface Mount

Connector Type

Header

Contact Shape

Square

Özellikler

Board Guide, Keying Slot, Pick and Place

Orientation

Vertical

Housing Material

Nylon

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Insulation Height

0.252 6.40mm

Shrouding

Shrouded - 4 Wall

Mating Contact Pitch

0.079 inch

Reference Standard

UL

Fabrika Tedarik Süresi

10 Weeks

Contact Type

Male Pin

Kurşunsuz Kodu

yes

Depth

6.3mm

Number Of Pcb Rows

2

Radyasyon Dayanımı

No
