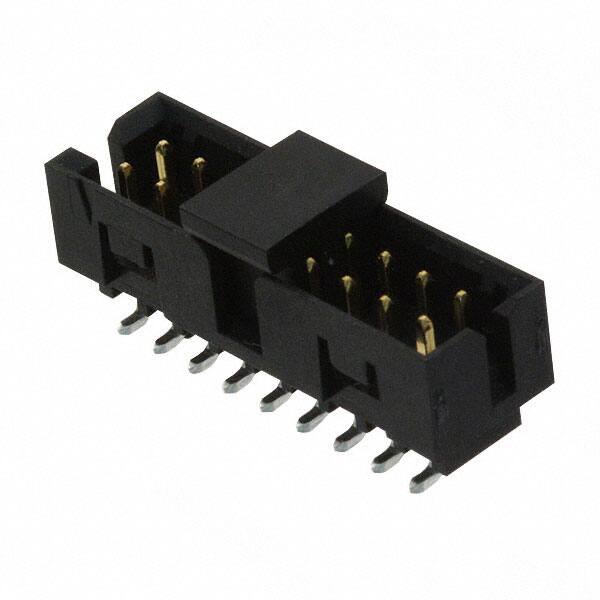

0878321814

Specifications

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch

2mm

Insulation Height

0.252 6.40mm

Montaj Tipi

Surface Mount

Material Flammability Rating

UL94 V-0

Renk

Black

Pozisyon Sayısı

18

Özellikler

Board Guide, Keying Slot, Pick and Place

Lead Pitch

2mm

Fastening Type

Latch Holder

Seri

Milli-Grid 87832

Contact Shape

Square

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.079 (2.00mm)

Number Of Contacts

18

Voltage Rated Dc

125V

Housing Material

Thermoplastic

Orientation

Vertical

Pitch Mating

0.079 2.00mm

Applications

Automotive, General Purpose, Telecommunications

Uzunluk

20.65mm

Akım Değeri

2A

Montaj

Surface Mount

Contact Plating

Gold

Sıra Sayısı

2

Terminal

Solder

Contact Finish Thickness Mating

15.0μin 0.38μm

Housing Color

Black

Contact Type

Male Pin

Contact Materials

Phosphor Bronze

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

16 Weeks

Contact Finish Mating

Gold

Contact Finish Post

Tin

Min. Çalışma Sıcaklığı

-55°C
