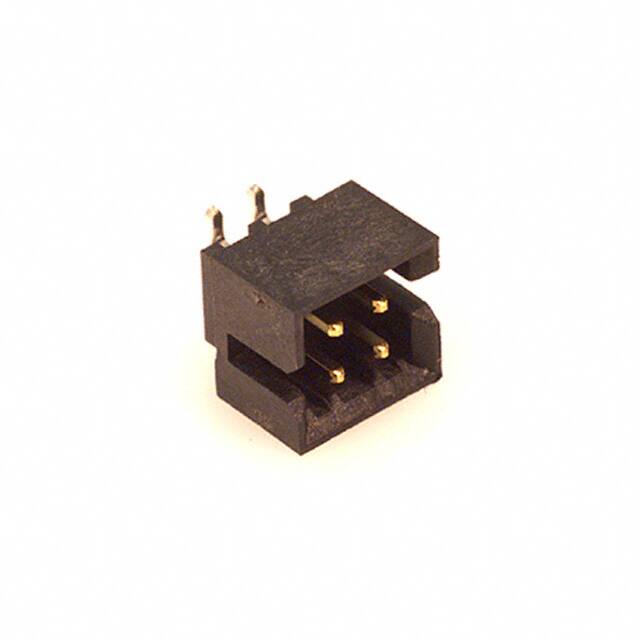

0878320409

Specifications

Row Spacing Mating

0.079 (2.00mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Number Of Contacts

4

Iec Conformance

NO

Orientation

Vertical

Housing Material

Nylon

Filter Feature

NO

Özellikler

Pick and Place

Seri

Milli-Grid 87832

Fastening Type

Latch Holder

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Insulation Height

0.252 6.40mm

Montaj Tipi

Surface Mount

Contact Finish Mating

Gold

Contact Finish Post

Tin

Ambalaj

Tube

RoHS Durumu

ROHS3 Compliant

Contact Lengthmating

0.141 3.60mm

Min. Çalışma Sıcaklığı

-55°C

JESD-609 Kodu

e3

Contact Finish Thickness Post

74.8μin 1.90μm

Depth

6.3mm

Kurşunsuz Kodu

yes

Mil Conformance

NO

Contact Type

Male Pin

Number Of Positions Loaded

All

Maks. Çalışma Sıcaklığı

105°C

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

8 Weeks

Sıra Sayısı

2

Montaj

Surface Mount

Mixed Contacts

NO

Contact Finish Thickness Mating

30.0μin 0.76μm
