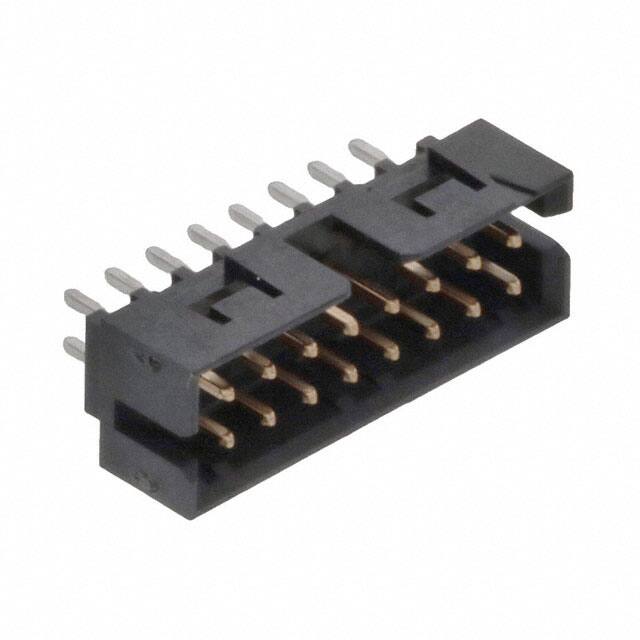

0878311619

Specifications

Gender

Male

Pitch

2mm

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Insulation Height

0.252 6.40mm

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Contact Length Post

0.098 2.50mm

Renk

Black

Özellikler

Keying Slot

Pozisyon Sayısı

16

Seri

Milli-Grid 87831

Fastening Type

Latch Holder

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Row Spacing Mating

0.079 (2.00mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Number Of Contacts

16

Orientation

Vertical

Housing Material

Nylon

Pitch Mating

0.079 2.00mm

Applications

Automotive, General Purpose, Telecommunications

Uzunluk

18.65mm

Sıra Sayısı

2

Contact Plating

Gold

Montaj

Through Hole

Contact Finish Thickness Mating

1.97μin 0.050μm

Terminal

Solder

Housing Color

Black

Contact Type

Male Pin

Number Of Positions Loaded

All

Maks. Çalışma Sıcaklığı

105°C

Contact Materials

Phosphor Bronze

Fabrika Tedarik Süresi

9 Weeks

Contact Finish Post

Tin

Contact Finish Mating

Gold

Min. Çalışma Sıcaklığı

-55°C

Contact Lengthmating

0.141 3.60mm
