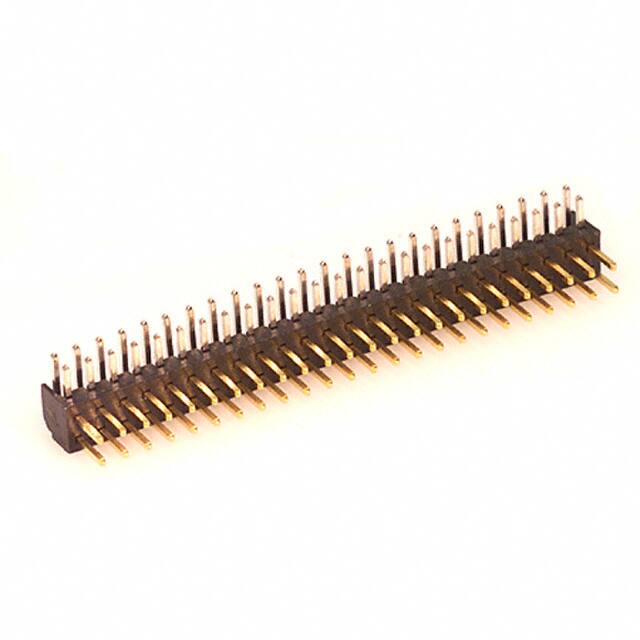

0877604816

Specifications

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.169 4.30mm

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Length Post

0.102 2.60mm

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Insulation Color

Black

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Type

Male Pin

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Parça Durumu

Active

Terminal

Solder

Fastening Type

Push-Pull

Sıra Sayısı

2

Fabrika Tedarik Süresi

22 Weeks

Connector Type

Header

Ambalaj

Tray

Pozisyon Sayısı

48

Contact Lengthmating

0.157 4.00mm

Montaj Tipi

Through Hole, Right Angle

Seri

Milli-Grid 87760

Contact Finish Mating

Gold

Applications

Automotive, General Purpose, Telecommunications

Shrouding

Unshrouded
