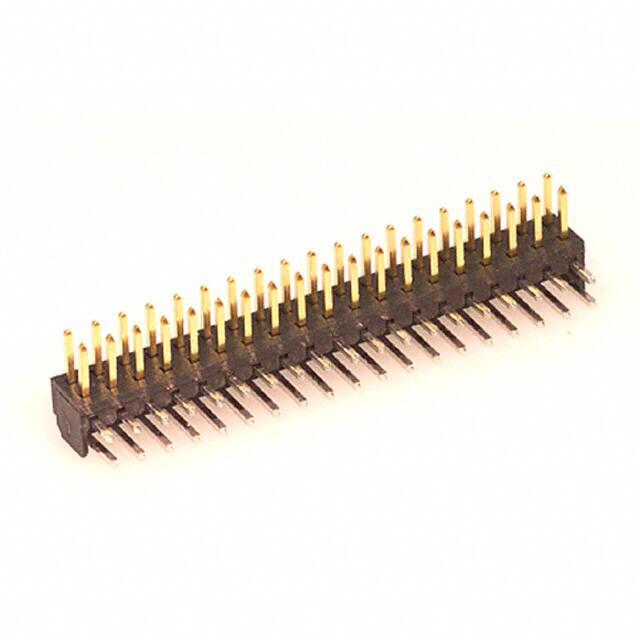

0877603816

Specifications

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.079 (2.00mm)

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Insulation Color

Black

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Length Post

0.102 2.60mm

Insulation Height

0.169 4.30mm

RoHS Durumu

ROHS3 Compliant

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Shrouding

Unshrouded

Applications

Automotive, General Purpose, Telecommunications

Contact Finish Mating

Gold

Seri

Milli-Grid 87760

Montaj Tipi

Through Hole, Right Angle

Contact Lengthmating

0.157 4.00mm

Ambalaj

Tray

Pozisyon Sayısı

38

Connector Type

Header

Fabrika Tedarik Süresi

22 Weeks

Sıra Sayısı

2

Fastening Type

Push-Pull

Terminal

Solder
