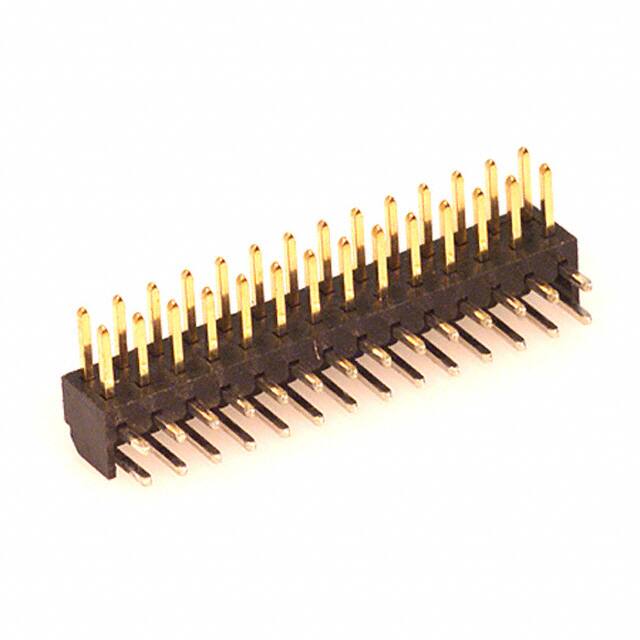

0877602816

Specifications

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Type

Male Pin

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.079 (2.00mm)

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Insulation Color

Black

Contact Length Post

0.102 2.60mm

Contact Finish Thickness Mating

15.0μin 0.38μm

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.169 4.30mm

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Contact Finish Mating

Gold

Applications

Automotive, General Purpose, Telecommunications

Shrouding

Unshrouded

Seri

Milli-Grid 87760

Montaj Tipi

Through Hole, Right Angle

Contact Lengthmating

0.157 4.00mm

Ambalaj

Tray

Pozisyon Sayısı

28

Sıra Sayısı

2

Fastening Type

Push-Pull

Terminal

Solder

Connector Type

Header

Fabrika Tedarik Süresi

13 Weeks
