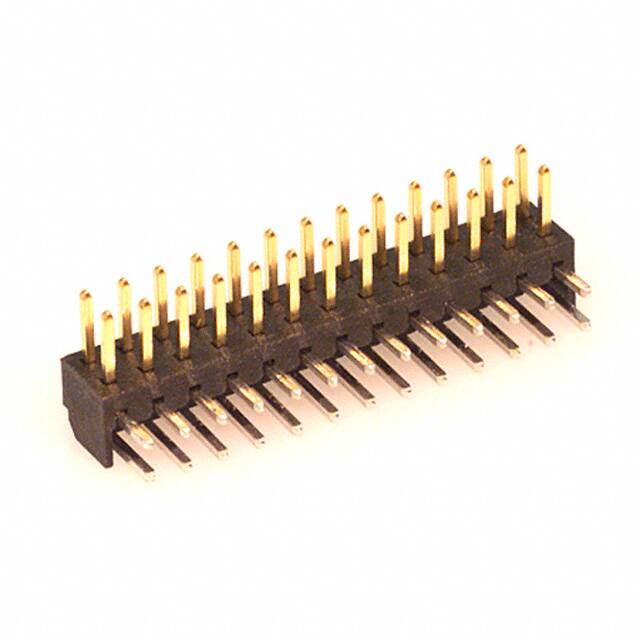

0877602616

Specifications

Ambalaj

Tray

Pozisyon Sayısı

26

Lead Pitch

2mm

Connector Type

Header

Fabrika Tedarik Süresi

23 Weeks

Sıra Sayısı

2

Terminal

Solder

Fastening Type

Push-Pull

Shrouding

Unshrouded

Applications

Automotive, General Purpose, Telecommunications

Uzunluk

26mm

Contact Finish Mating

Gold

Maks. Çalışma Sıcaklığı

105°C

Min. Çalışma Sıcaklığı

-55°C

Max Voltage Rating Ac

125V

Housing Material

Polychlorinated

Seri

Milli-Grid 87760

Contact Lengthmating

0.157 4.00mm

Montaj Tipi

Through Hole, Right Angle

Orientation

Right Angle

Voltage Rated Dc

125V

Depth

4mm

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Length Post

0.102 2.60mm

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.169 4.30mm

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Akım Değeri

2A

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Parça Durumu

Active

Insulation Resistance

1GOhm

Housing Color

Black

Kurşunsuz

Contains Lead

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Type

Male Pin

Gender

Male

Contact Materials

Phosphor Bronze
