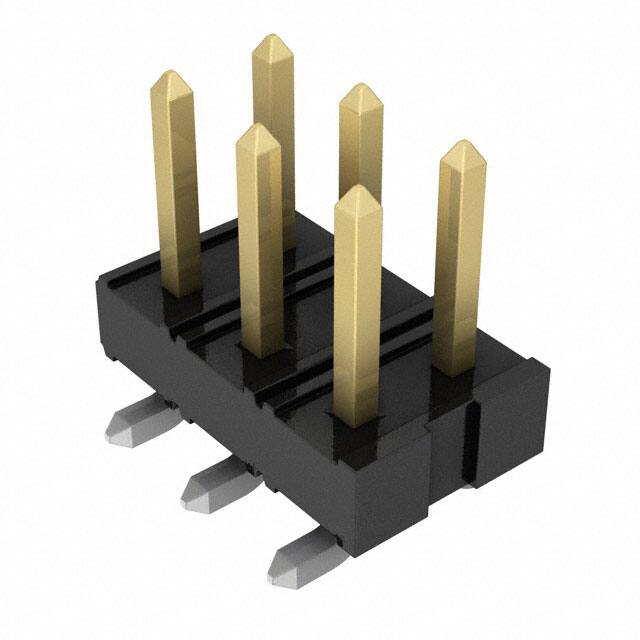

0877590664

Specifications

Connector Type

Header, Breakaway

Fabrika Tedarik Süresi

12 Weeks

Filter Feature

NO

Number Of Contacts

6

Sıra Sayısı

2

Terminal

Solder

Fastening Type

Push-Pull

Montaj

Surface Mount

Ambalaj

Tube

Mixed Contacts

NO

JESD-609 Kodu

e3

Din Conformance

NO

Housing Material

Nylon

Seri

Milli-Grid 87759

Contact Lengthmating

0.150 3.81mm

Montaj Tipi

Surface Mount

Orientation

Vertical

Shrouding

Unshrouded

Applications

Automotive, General Purpose, Telecommunications

Maks. Çalışma Sıcaklığı

105°C

Contact Finish Mating

Gold

Min. Çalışma Sıcaklığı

-55°C

Mil Conformance

NO

Contact Finish Thickness Mating

15.0μin 0.38μm

Iec Conformance

NO

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Insulation Height

0.059 1.50mm

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Depth

5.5mm

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Finish Post

Tin

Özellikler

Pick and Place

Ul Flammability Code

94V-0

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Parça Durumu

Active
