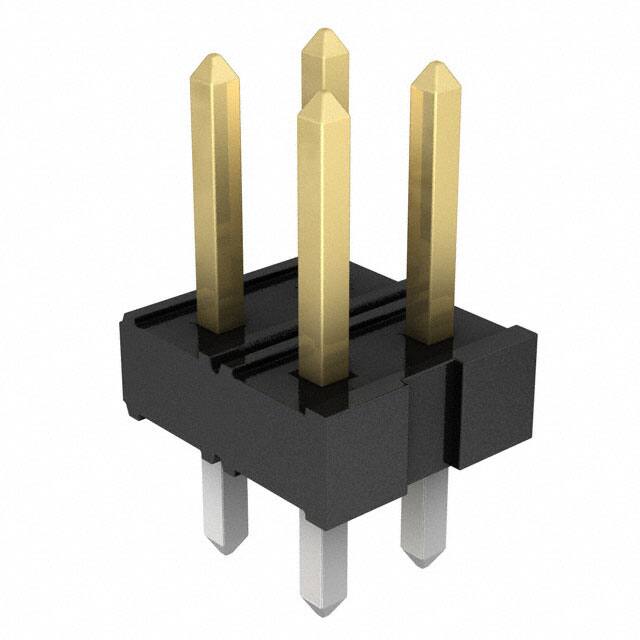

0877580450

Specifications

Seri

Milli-Grid 87758

Contact Lengthmating

0.217 5.50mm

Montaj Tipi

Through Hole

Orientation

Vertical

Housing Material

Nylon

Maks. Çalışma Sıcaklığı

105°C

Contact Finish Mating

Gold

Min. Çalışma Sıcaklığı

-55°C

Renk

Black

Shrouding

Unshrouded

Applications

Automotive, General Purpose, Telecommunications

Number Of Contacts

4

Sıra Sayısı

2

Terminal

Solder

Fastening Type

Push-Pull

Connector Type

Header, Breakaway

Fabrika Tedarik Süresi

15 Weeks

Overall Contact Length

0.378 9.60mm

Pozisyon Sayısı

4

Ambalaj

Tray

Montaj

Through Hole

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Number Of Circuits

4

Contact Type

Male Pin

Row Spacing Mating

0.079 (2.00mm)

Contact Materials

Phosphor Bronze

Contact Plating

Gold

Insulation Materials

Polyamide (PA46), Nylon 4/6, Glass Filled

Parça Durumu

Active

Akım Değeri

2A

Housing Color

Black

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Length Post

0.102 2.60mm

Contact Shape

Square

Pitch Mating

0.079 2.00mm

Insulation Height

0.059 1.50mm

RoHS Durumu

ROHS3 Compliant

Depth

4mm
