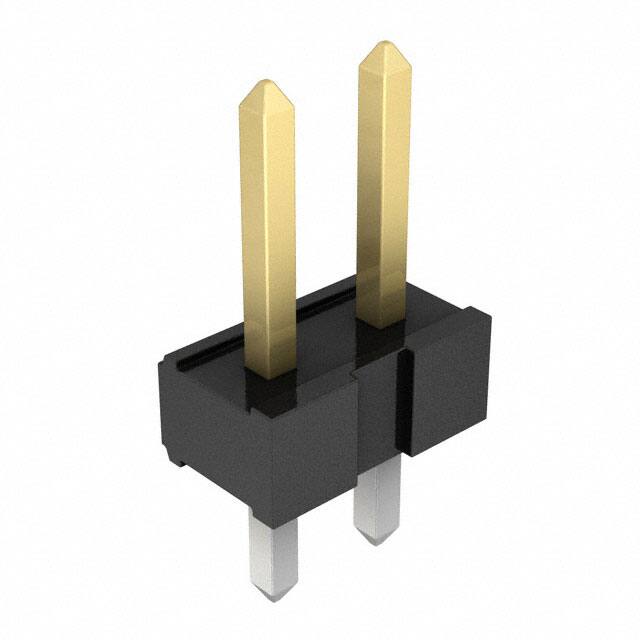

0877580217

Specifications

Sıra Sayısı

2

Filter Feature

NO

Terminal

Solder

Fastening Type

Push-Pull

HTS Kodu

8536.69.40.40

Connector Type

Header, Breakaway

Fabrika Tedarik Süresi

16 Weeks

Mixed Contacts

NO

JESD-609 Kodu

e3

Overall Contact Length

0.319 8.10mm

Ambalaj

Tray

Montaj

Through Hole

Pozisyon Sayısı

2

Seri

Milli-Grid 87758

Contact Lengthmating

0.157 4.00mm

Montaj Tipi

Through Hole

Orientation

Vertical

Din Conformance

NO

Housing Material

Nylon

Contact Finish Mating

Gold

Maks. Çalışma Sıcaklığı

105°C

Min. Çalışma Sıcaklığı

-55°C

Mil Conformance

NO

Applications

Automotive, General Purpose, Telecommunications

Shrouding

Unshrouded

Iec Conformance

NO

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Length Post

0.102 2.60mm

Insulation Height

0.059 1.50mm

RoHS Durumu

ROHS3 Compliant

Contact Shape

Square

ECCN Kodu

EAR99

Depth

4mm

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin
