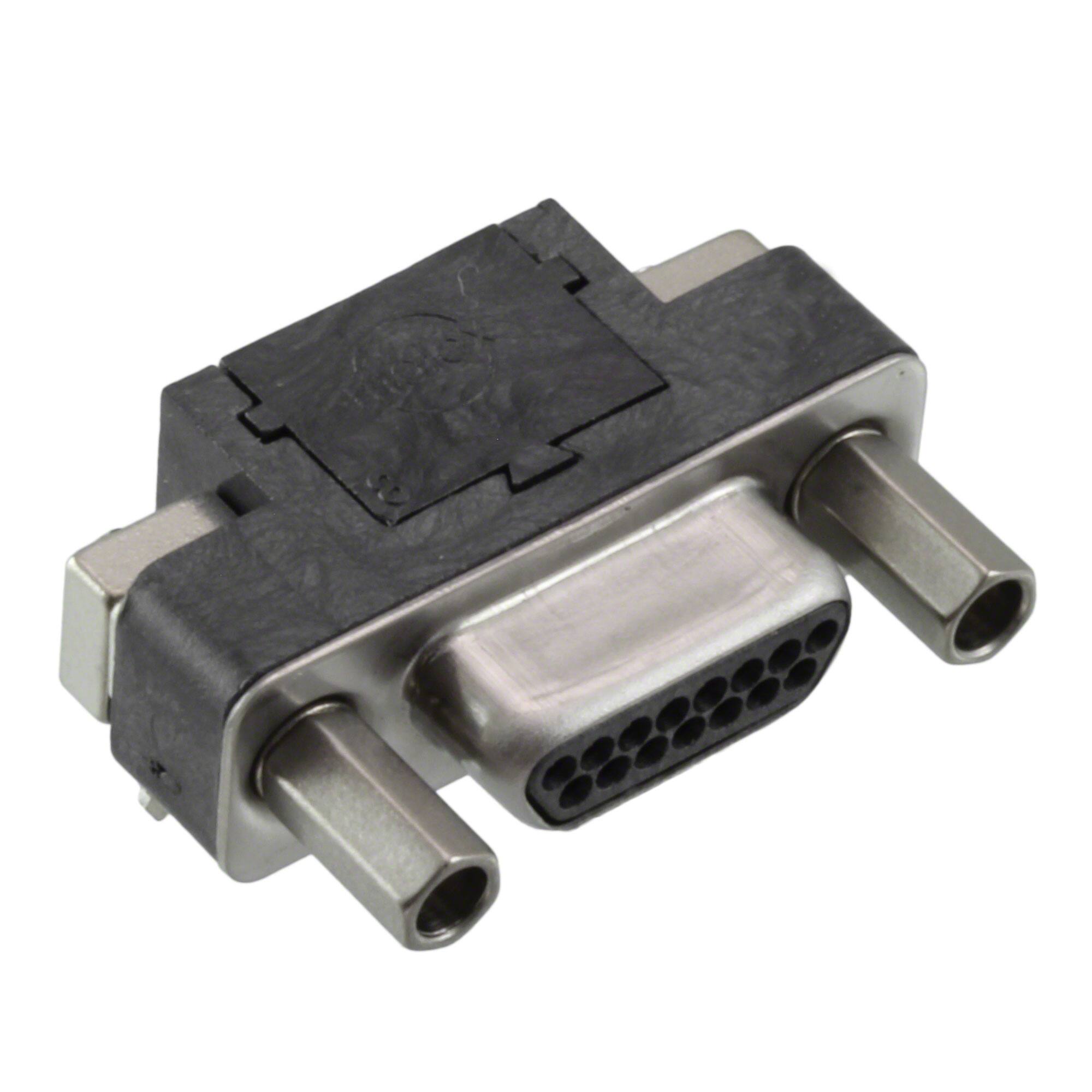

Specifications
- Pozisyon Sayısı
- 15
- Sıra Sayısı
- 2
- Max Voltage Rating Ac
- 350V
- Flammability Rating
- UL94 V-0
- Number Of Circuits
- 15
- Gender
- Male
- Housing Material
- Polymer
- Contact Type
- Signal
- Contact Resistance
- 8mOhm
- Number Of Contacts
- 15
- Backset Spacing
- 0.267 (6.78mm)
- Connector Style
- D-Type, Micro-D
- Lead Pitch
- 1.27mm
- Current Rating Amps
- 1A
- Contact Plating
- Gold
- Terminal Sayısı
- 15
- Montaj Tipi
- Panel Mount, Through Hole, Right Angle
- Shell Size Connector Layout
- 0.050 Pitch x 0.050 Row to Row
- Orientation
- Right Angle
- Material
- Stainless Steel
- Ambalaj
- Tube
- Contact Finish Thickness
- 15.0μin 0.38μm
- Maks. Çalışma Sıcaklığı
- 125°C
- Contact Finish
- Gold
- Insulation Resistance
- 5GOhm
- Terminal
- Solder
- Shell Material Finish
- Steel, Nickel Plated
- Renk
- Black
- Contact Materials
- Copper Alloy
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Voltage Rated Dc
- 350V
- Nominal Gerilim
- 350V
- Flange Feature
- Mating Side, Female Screwlock (2-56)
- Yükseklik
- 7.82mm
- Pitch
- 1.27mm
- Radyasyon Dayanımı
- No
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Material Flammability Rating
- UL94 V-0
- Özellikler
- Board Lock, Shielded
- Parça Durumu
- Active
