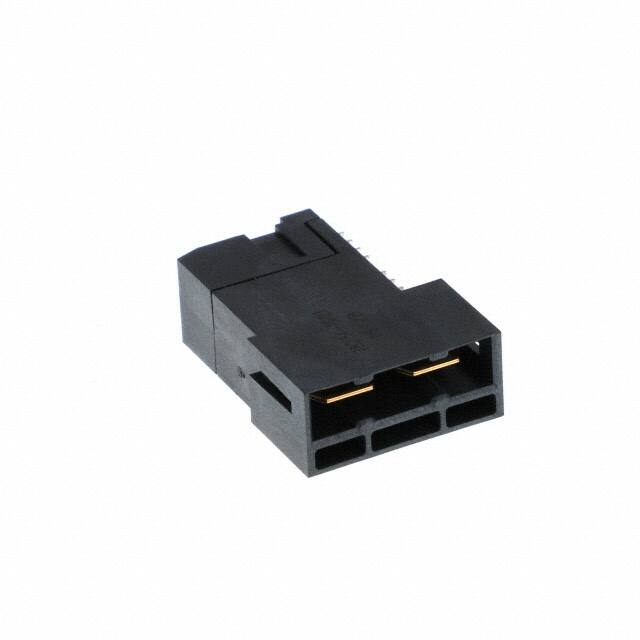

0782341001

Specifications

Contact Materials

NOT SPECIFIED

Number Of Positions Loaded

All

Contact Layout Typical

2 Power

Özellikler

Board Guide

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Rating Amps

80A

HTS Kodu

8536.69.40.30

Contact Finish

Gold

Total Number Of Contacts

2

Parça Durumu

Obsolete

Nominal Gerilim

250V

Option

GENERAL PURPOSE

Mil Conformance

NO

Filter Feature

NO

Terminal

Press-Fit

Ambalaj

Tray

Seri

GbX I-Trac 78234

Din Conformance

NO

Montaj Tipi

Board Edge, Through Hole, Right Angle

Çalışma Sıcaklığı

-20°C~85°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating

UL94 V-0

Connector Style

I-Trac, Hold Down Left

JESD-609 Kodu

e3

Empty Shell

NO

ECCN Kodu

EAR99

Number Of Columns

1

Ul Flammability Code

94V-0

Shell Material

POLYETHYLENE

Connector Type

Header, Male Blades

RoHS Durumu

ROHS3 Compliant

Kurşunsuz Kodu

yes

Pozisyon Sayısı

2

Contact Finish Thickness

30.0μin 0.76μm

Mixed Contacts

NO

Iec Conformance

NO

Renk

Black
