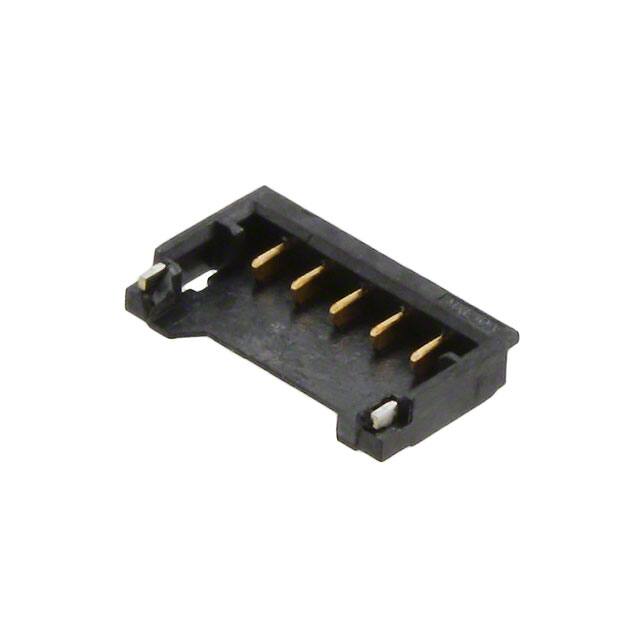

0781710005

Specifications

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount

Çalışma Sıcaklığı

-25°C~85°C

Din Conformance

NO

JESD-609 Kodu

e4

Fastening Type

Friction Lock

Insulation Color

Black

Insulation Height

0.055 1.40mm

RoHS Durumu

ROHS3 Compliant

Connector Type

Plug

Pozisyon Sayısı

5

Kurşunsuz Kodu

yes

Shrouding

Shrouded - 3 Wall

Sıra Sayısı

1

Iec Conformance

NO

Mixed Contacts

NO

Contact Type

Tab

Contact Shape

Rectangular

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Total Number Of Contacts

5

Applications

Automotive, General Purpose, Lighting, Telecommunications

Nominal Gerilim

50V

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Filter Feature

NO

Additional Feature

POLARIZED

Mil Conformance

NO

Style

Board to Cable/Wire

Terminal

Solder

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tape & Reel (TR)

Contact Gender

MALE

Pitch Mating

0.047 1.20mm

Contact Finish Mating

Gold

Seri

Pico-EZmate 78171
