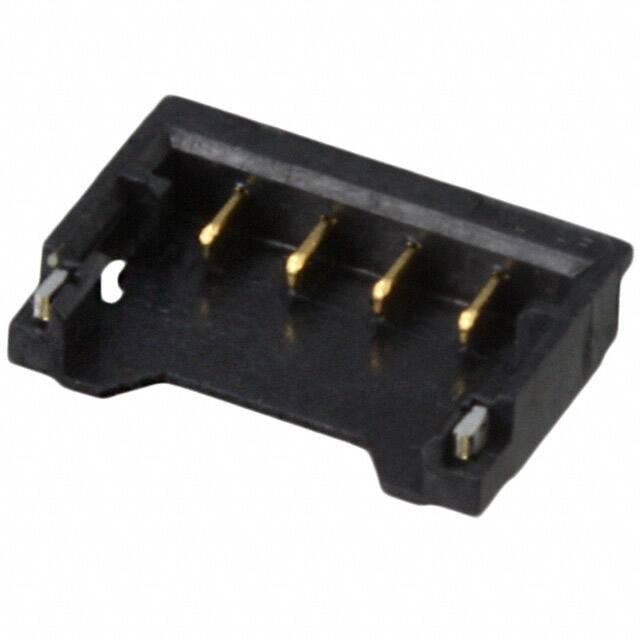

0781710004

Specifications

JESD-609 Kodu

e4

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-25°C~85°C

Montaj Tipi

Surface Mount

Din Conformance

NO

RoHS Durumu

ROHS3 Compliant

Connector Type

Plug

Fastening Type

Friction Lock

Insulation Color

Black

Insulation Height

0.055 1.40mm

Shrouding

Shrouded - 3 Wall

Sıra Sayısı

1

Pozisyon Sayısı

4

Kurşunsuz Kodu

yes

Contact Type

Tab

Contact Shape

Rectangular

Mixed Contacts

NO

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Solder Retention

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Nominal Gerilim

50V

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Total Number Of Contacts

4

Applications

Automotive, General Purpose, Lighting, Telecommunications

Fabrika Tedarik Süresi

12 Weeks

Terminal

Solder

Style

Board to Cable/Wire

Filter Feature

NO

Additional Feature

POLARIZED

Mil Conformance

NO

Pitch Mating

0.047 1.20mm

Contact Finish Mating

Gold

Seri

Pico-EZmate 78171

Ambalaj

Tape & Reel (TR)

Contact Gender

MALE
