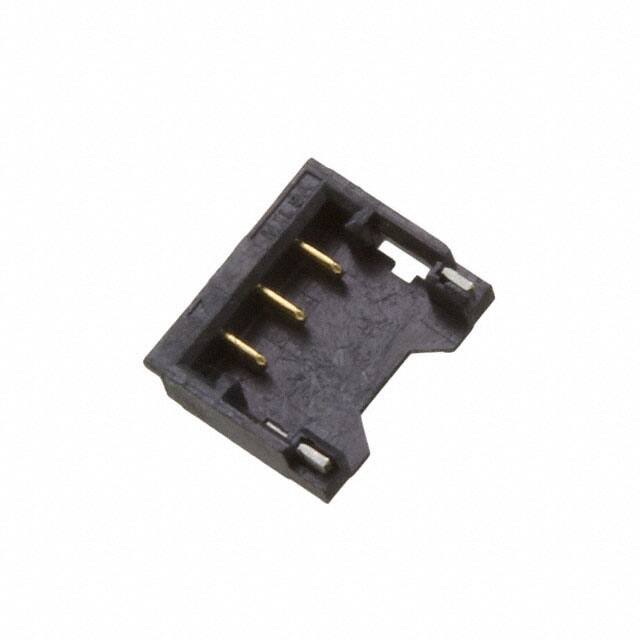

0781710003

Specifications

Insulation Height

0.055 1.40mm

Ul Flammability Code

94V-0

Fastening Type

Friction Lock

Insulation Color

Black

Connector Type

Plug

RoHS Durumu

ROHS3 Compliant

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount

Çalışma Sıcaklığı

-25°C~85°C

JESD-609 Kodu

e4

Mixed Contacts

NO

Iec Conformance

NO

Contact Type

Tab

Contact Shape

Rectangular

Pozisyon Sayısı

3

Kurşunsuz Kodu

yes

Sıra Sayısı

1

Shrouding

Shrouded - 3 Wall

Total Number Of Contacts

3

Applications

Automotive, General Purpose, Lighting, Telecommunications

Nominal Gerilim

50V

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

MALE

Ambalaj

Tape & Reel (TR)

Contact Finish Mating

Gold

Seri

Pico-EZmate 78171

Pitch Mating

0.047 1.20mm

Mil Conformance

NO

Filter Feature

NO

Additional Feature

POLARIZED

Fabrika Tedarik Süresi

12 Weeks

Terminal

Solder

Style

Board to Cable/Wire
