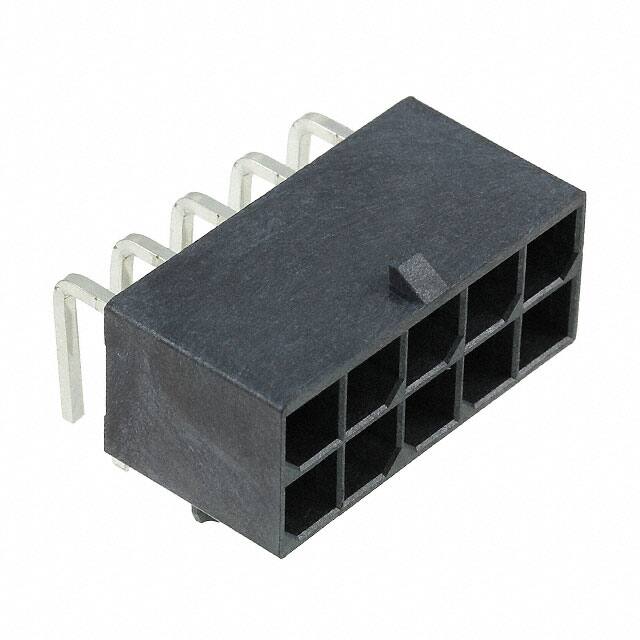

0768250010

Specifications

Din Conformance

NO

Contact Type

Male Pin

HTS Kodu

8536.69.40.30

Contact Finish Thickness Post

60.0μin 1.52μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Fastening Type

Locking Ramp

Applications

Automotive, General Purpose, Industrial, Telecommunications

Mixed Contacts

NO

Fabrika Tedarik Süresi

11 Weeks

Mil Conformance

NO

Contact Finish Thickness Mating

60.0μin 1.52μm

Connector Type

Header

Additional Feature

POLARIZED, SHROUDED

Empty Shell

NO

Contact Materials

Copper

ECCN Kodu

EAR99

Özellikler

Board Guide, Glow Wire Compliant

Insulation Height

0.572 14.53mm

Shell Material

POLYETHYLENE

Kurşunsuz Kodu

yes

Iec Conformance

NO

Insulation Color

Black

Pozisyon Sayısı

10

Insulation Materials

Liquid Crystal Polymer (LCP)

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

2

Contact Finish Mating

Tin

Parça Durumu

Active

Row Spacing Mating

0.224 (5.70mm)

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole, Right Angle

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Contact Length Post

0.142 3.60mm

Seri

Mega-Fit

Ul Flammability Code

94V-0

JESD-609 Kodu

e3

Pitch Mating

0.224 5.70mm

Ambalaj

Tray
