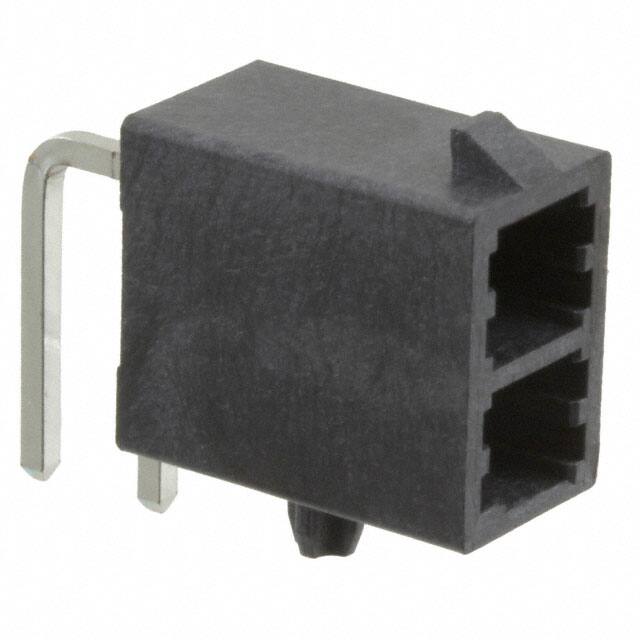

Specifications
- Contact Shape
- Square
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Finish Thickness Post
- 60.0μin 1.52μm
- Contact Type
- Male Pin
- Applications
- Automotive, General Purpose, Industrial, Telecommunications
- Fastening Type
- Locking Ramp
- Contact Finish Thickness Mating
- 60.0μin 1.52μm
- Fabrika Tedarik Süresi
- 16 Weeks
- Connector Type
- Header
- Contact Materials
- Copper
- Insulation Height
- 0.572 14.53mm
- Özellikler
- Board Guide, Glow Wire Compliant
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- RoHS Durumu
- ROHS3 Compliant
- Pozisyon Sayısı
- 2
- Insulation Color
- Black
- Parça Durumu
- Active
- Contact Finish Mating
- Tin
- Row Spacing Mating
- 0.224 (5.70mm)
- Montaj Tipi
- Through Hole, Right Angle
- Material Flammability Rating
- UL94 V-0
- Shrouding
- Shrouded - 4 Wall
- Seri
- Mega-Fit
- Contact Length Post
- 0.142 3.60mm
- Number Of Positions Loaded
- All
- Ambalaj
- Tray
- Terminal
- Solder
- Style
- Board to Cable/Wire
