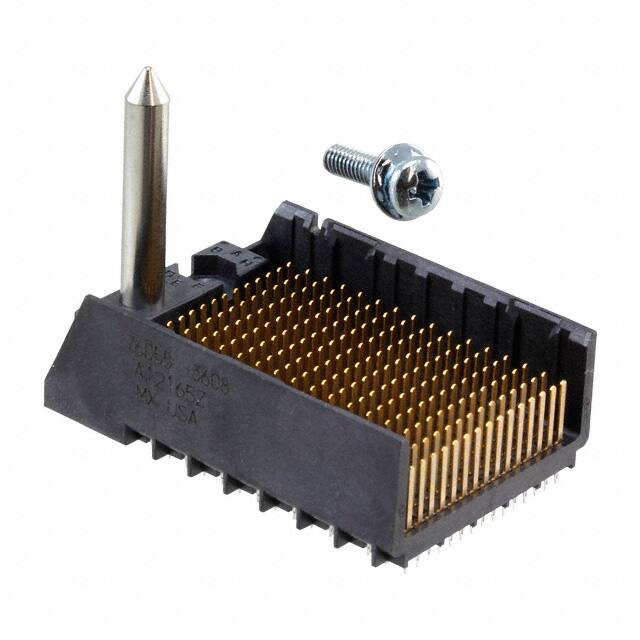

0760553608

Specifications

Contact Plating

Gold, Tin

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

15 Weeks

Connector Type

Header, Male Pins

Max Voltage Rating Ac

30V

Depth

24.8mm

Material Flammability Rating

UL94 V-0

Renk

Black

HTS Kodu

8536.69.40.40

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Flammability Rating

UL94 V-0

Pitch

0.053 1.35mm

Contact Finish

Gold

Terminal

Press-Fit

Contact Materials

NOT SPECIFIED

Housing Material

Thermoplastic

Additional Feature

IMPACT, POLARIZED

Mil Conformance

NO

Iec Conformance

NO

Mixed Contacts

NO

Contact Layout Typical

80 Differential Pairs

Contact Finish Thickness

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~85°C

Number Of Columns

16

Din Conformance

NO

Total Number Of Contacts

240

Number Of Positions Loaded

All

Seri

Impact 76055

ECCN Kodu

EAR99

Montaj

Through Hole

Uzunluk

30.3mm

Ul Flammability Code

94V-0

Orientation

Vertical

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Through Hole

Sıra Sayısı

15
