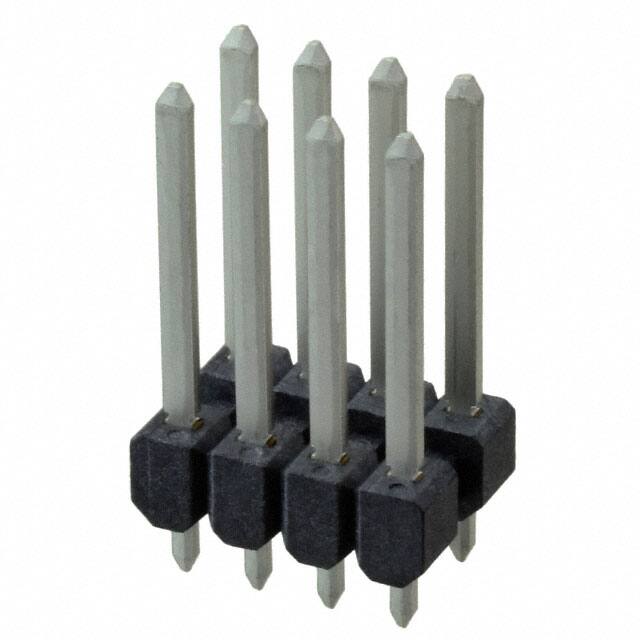

0757575141

Specifications

Contact Length Post

0.120 3.05mm

Halogen Free

Low Halogen

Applications

Automotive

Sıra Sayısı

2

Filter Feature

NO

Seri

MX150 75757

Voltage Rated Dc

500V

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Lengthmating

0.633 16.09mm

Overall Contact Length

0.931 23.64mm

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Min. Çalışma Sıcaklığı

-40°C

Fastening Type

Push-Pull

Shrouding

Unshrouded

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Terminal Adımı

3.5mm

Iec Conformance

NO

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Housing Material

Thermoplastic

Row Spacing Mating

0.236 (6.00mm)

Fabrika Tedarik Süresi

9 Weeks

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Connector Type

Header, Breakaway

Kurşunsuz Kodu

yes

Maks. Çalışma Sıcaklığı

125°C

Terminal

Solder

Pozisyon Sayısı

8

Orientation

Vertical

Contact Finish Thickness Mating

100.0μin 2.54μm

Mil Conformance

NO

Akım Değeri

16A

Pitch Mating

0.138 3.50mm

Contact Materials

Cartridge Brass

Insulation Color

Black

Parça Durumu

Active

Insulation Height

0.177 4.50mm

Option

GENERAL PURPOSE
