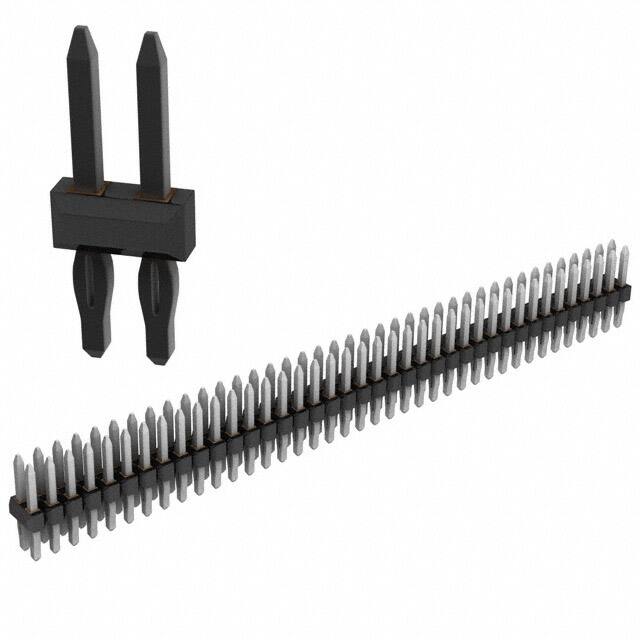

0751020116

Specifications

Sıra Sayısı

2

Overall Contact Length

0.517 13.13mm

Housing Material

Polymer

Maks. Çalışma Sıcaklığı

105°C

Fastening Type

Push-Pull

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Pozisyon Sayısı

78

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.240 6.10mm

Insulation Height

0.090 2.29mm

REACH Uyumluluk Kodu

unknown

Gender

Male

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Number Of Positions Loaded

All

Kurşunsuz

Lead Free

Contact Type

Male Pin

Seri

C-Grid 75102

Montaj Tipi

Through Hole

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Orientation

Straight

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Length Post

0.187 4.75mm

Housing Color

Black

Contact Materials

Copper Alloy

Depth

5.08mm

Shrouding

Unshrouded

Terminal

Press-Fit, Solder

Contact Shape

Square

Contact Finish Thickness Mating

200.0μin 5.08μm

Row Spacing Mating

0.100 (2.54mm)

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Connector Type

Header, Breakaway

Contact Finish Mating

Tin

Min. Çalışma Sıcaklığı

-40°C

Uzunluk

98.81mm
