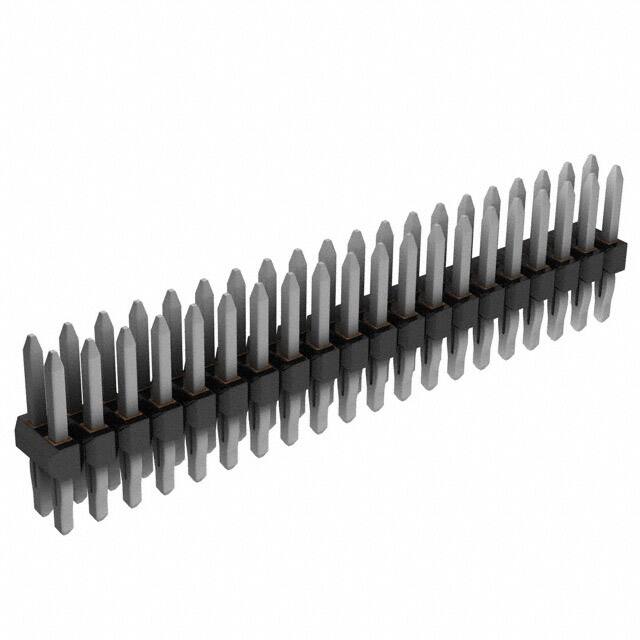

0751020097

Specifications

Overall Contact Length

0.517 13.13mm

Housing Material

Polymer

Sıra Sayısı

2

Maks. Çalışma Sıcaklığı

105°C

Fastening Type

Push-Pull

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

Pozisyon Sayısı

40

Insulation Height

0.090 2.29mm

Contact Lengthmating

0.240 6.10mm

Pitch Mating

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Gender

Male

Contact Type

Male Pin

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

Parça Durumu

Active

Montaj

Through Hole

Montaj Tipi

Through Hole

Seri

C-Grid 75102

Orientation

Straight

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Depth

5.08mm

Contact Materials

Copper Alloy

Housing Color

Black

Contact Length Post

0.187 4.75mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Terminal

Press-Fit, Solder

Shrouding

Unshrouded

Contact Shape

Square

Contact Finish Thickness Mating

200.0μin 5.08μm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Mating

Tin

Connector Type

Header, Breakaway

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Uzunluk

50.55mm

Min. Çalışma Sıcaklığı

-40°C
