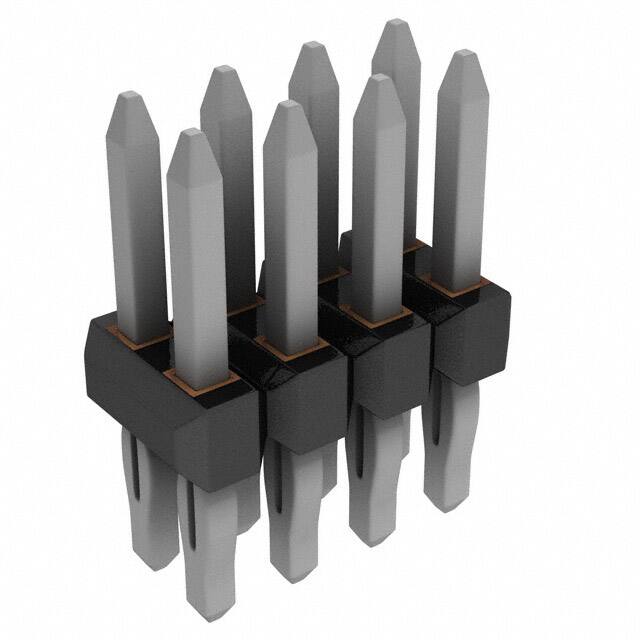

0751020081

Specifications

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Mating

200.0μin 5.08μm

Contact Shape

Square

Min. Çalışma Sıcaklığı

-40°C

Uzunluk

9.91mm

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Connector Type

Header, Breakaway

Contact Finish Mating

Tin

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Orientation

Straight

Seri

C-Grid 75102

Montaj Tipi

Through Hole

Montaj

Through Hole

Shrouding

Unshrouded

Terminal

Press-Fit, Solder

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Depth

5.08mm

Contact Materials

Copper Alloy

Housing Color

Black

Contact Length Post

0.187 4.75mm

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.240 6.10mm

REACH Uyumluluk Kodu

unknown

Insulation Height

0.090 2.29mm

Pozisyon Sayısı

8

Parça Durumu

Active

Number Of Positions Loaded

All

Contact Type

Male Pin

Kurşunsuz

Lead Free

Gender

Male

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Çalışma Sıcaklığı

105°C

Sıra Sayısı

2

Housing Material

Polymer

Overall Contact Length

0.517 13.13mm

Style

Board to Board or Cable

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull
