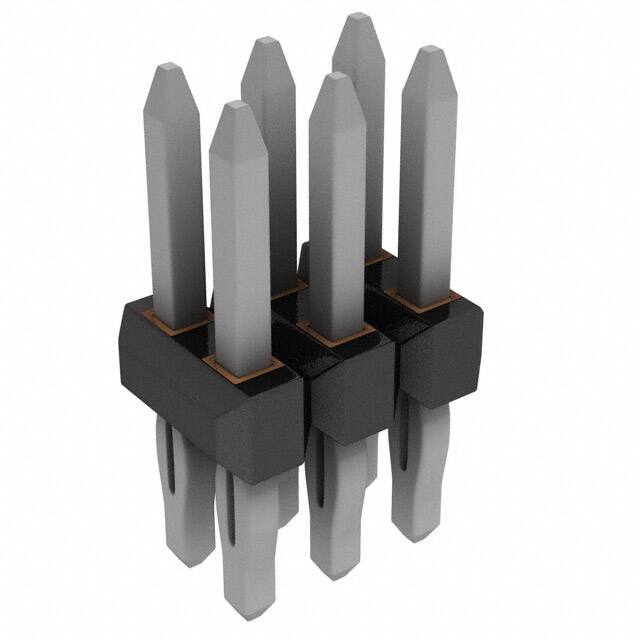

0751020080

Specifications

Uzunluk

7.37mm

Min. Çalışma Sıcaklığı

-40°C

Number Of Contacts

6

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Connector Type

Header, Breakaway

Contact Finish Mating

Tin

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Mating

200.0μin 5.08μm

Contact Shape

Square

Pitch

2.54mm

Terminal

Press-Fit, Solder

Contact Finish Post

Tin

Shrouding

Unshrouded

Depth

5.08mm

Contact Materials

Copper Alloy

Housing Color

Black

Contact Length Post

0.187 4.75mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Orientation

Straight

Seri

C-Grid 75102

Montaj

Through Hole

Montaj Tipi

Through Hole

Parça Durumu

Active

Contact Type

Male Pin

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Gender

Male

Contact Plating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Lengthmating

0.240 6.10mm

Insulation Height

0.090 2.29mm

Pitch Mating

0.100 2.54mm

Pozisyon Sayısı

6

Style

Board to Board or Cable

Fastening Type

Push-Pull

Maks. Çalışma Sıcaklığı

105°C

Insulation Color

Black
