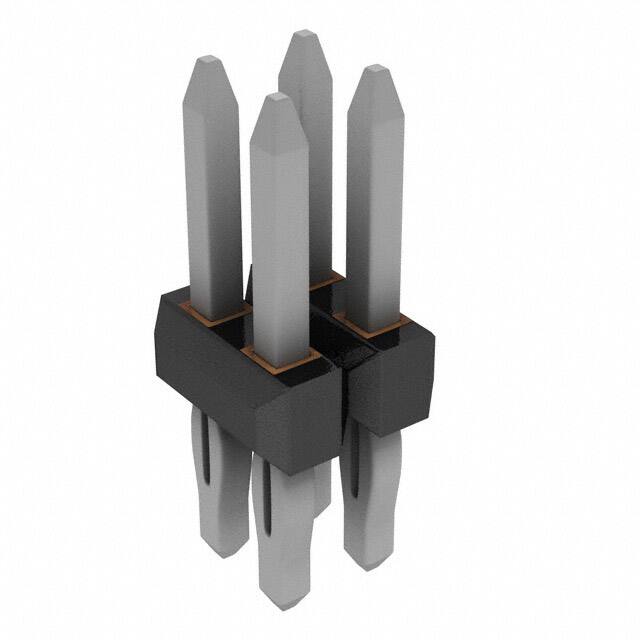

0751020079

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Contact Plating

Tin

Gender

Male

Contact Type

Male Pin

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

Parça Durumu

Active

Pozisyon Sayısı

4

Contact Lengthmating

0.240 6.10mm

Insulation Height

0.090 2.29mm

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Style

Board to Board or Cable

Overall Contact Length

0.517 13.13mm

Housing Material

Polymer

Sıra Sayısı

2

Renk

Black

Insulation Color

Black

Maks. Çalışma Sıcaklığı

105°C

Contact Finish Mating

Tin

Connector Type

Header, Breakaway

Number Of Contacts

4

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Uzunluk

4.83mm

Min. Çalışma Sıcaklığı

-40°C

Pitch

2.54mm

Contact Shape

Square

Contact Finish Thickness Mating

200.0μin 5.08μm

Row Spacing Mating

0.100 (2.54mm)

Contact Length Post

0.187 4.75mm

Housing Color

Black

Contact Materials

Copper Alloy

Depth

5.08mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Terminal

Press-Fit, Solder

Contact Finish Post

Tin

Shrouding

Unshrouded

Montaj

Through Hole

Montaj Tipi

Through Hole
