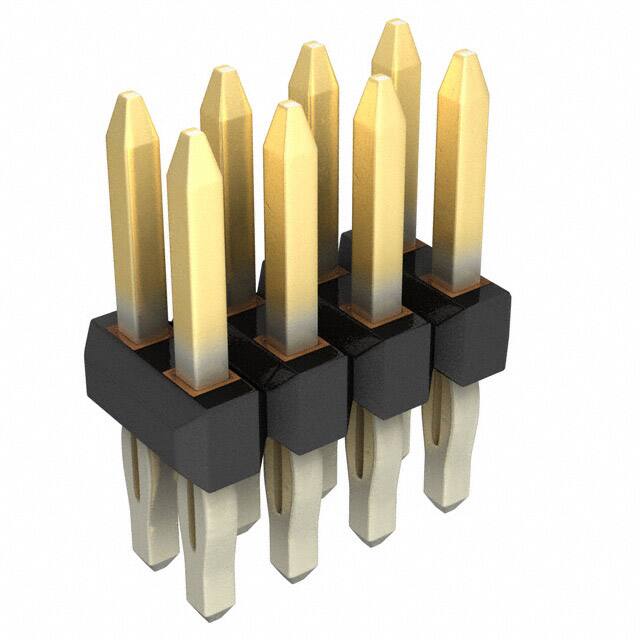

0751020042

Specifications

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Connector Type

Header, Breakaway

Contact Finish Mating

Gold

Uzunluk

9.91mm

Min. Çalışma Sıcaklığı

-40°C

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Shape

Square

Contact Finish Thickness Mating

15.0μin 0.38μm

Row Spacing Mating

0.100 (2.54mm)

Depth

5.08mm

Contact Materials

Copper Alloy

Housing Color

Black

Contact Length Post

0.187 4.75mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish Post

Tin

Terminal

Press-Fit, Solder

Shrouding

Unshrouded

Seri

C-Grid 75102

Montaj

Through Hole

Montaj Tipi

Through Hole

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Orientation

Straight

RoHS Durumu

ROHS3 Compliant

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Discontinued

Contact Type

Male Pin

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

Pozisyon Sayısı

8

Contact Lengthmating

0.240 6.10mm

Insulation Height

0.090 2.29mm

Pitch Mating

0.100 2.54mm

Fastening Type

Push-Pull

Style

Board to Board or Cable

Sıra Sayısı

2

Housing Material

Polymer

Overall Contact Length

0.517 13.13mm

Maks. Çalışma Sıcaklığı

105°C
