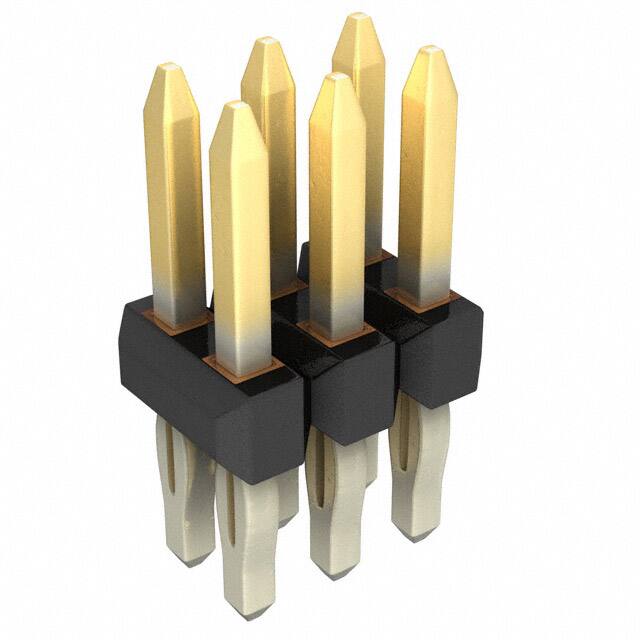

0751020041

Specifications

Contact Finish Mating

Gold

Connector Type

Header, Breakaway

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Number Of Contacts

6

Min. Çalışma Sıcaklığı

-40°C

Uzunluk

7.37mm

Pitch

2.54mm

Contact Shape

Square

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Finish Thickness Post

100.0μin 2.54μm

Row Spacing Mating

0.100 (2.54mm)

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Depth

5.08mm

Contact Materials

Copper Alloy

Housing Color

Black

Contact Length Post

0.187 4.75mm

Shrouding

Unshrouded

Contact Finish Post

Tin

Terminal

Press-Fit, Solder

Montaj Tipi

Through Hole

Montaj

Through Hole

Seri

C-Grid 75102

Orientation

Straight

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Contact Plating

Gold

RoHS Durumu

ROHS3 Compliant

Number Of Positions Loaded

All

Contact Type

Male Pin

Kurşunsuz

Lead Free

Parça Durumu

Discontinued

Pozisyon Sayısı

6

Pitch Mating

0.100 2.54mm

Contact Lengthmating

0.240 6.10mm

Insulation Height

0.090 2.29mm

Fastening Type

Push-Pull

Style

Board to Board or Cable

Housing Material

Polymer
