Specifications

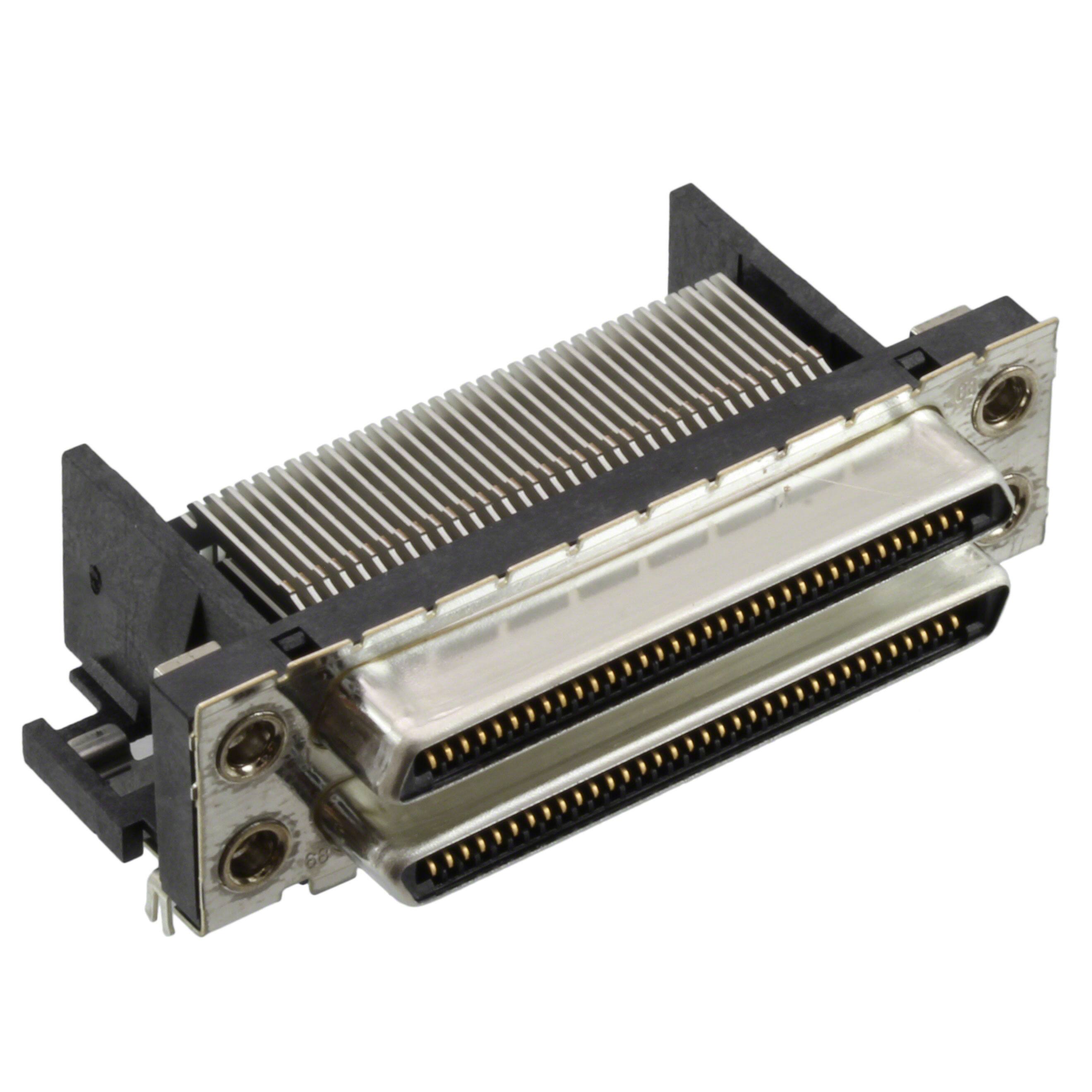

- Connector Type
- Stacked, 2 Receptacles
- Özellikler
- Board Lock, Shielded
- Gender
- Receptacle
- Pozisyon Sayısı
- 68, 68
- Mixed Contacts
- NO
- Mil Conformance
- NO
- Uzunluk
- 42.7mm
- Din Conformance
- NO
- Contact Finish Thickness
- Flash
- Filter Feature
- NO
- Iec Conformance
- NO
- Montaj
- Panel, Through Hole
- Kurşunsuz Kodu
- yes
- Pitch
- 1.6mm
- Min. Çalışma Sıcaklığı
- -55°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Depth
- 24.82mm
- ECCN Kodu
- EAR99
- Parça Durumu
- Active
- Seri
- Ultra+ VHDCI 74337
- Montaj Tipi
- Panel Mount, Through Hole, Right Angle
- Contact Plating
- Gold, Tin
- Number Of Contacts
- 136
- HTS Kodu
- 8536.69.40.30
- Akım Değeri
- 500mA
- Ul Flammability Code
- 94V-0
- Connector Style
- Outer Shroud Contacts
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Option
- GENERAL PURPOSE
- Housing Material
- Thermoplastic
- Lead Pitch
- 800μm
- Contact Finish
- Gold
- Shell Material
- POLYETHYLENE
- Tip
- SCSI+, VHDCI
- Empty Shell
- NO
- Sıra Sayısı
- 2
- Insulation Resistance
- 500MOhm
- Terminal
- Solder
- Contact Materials
- Bronze
- Flange Feature
- Housing/Shell (M2.6)
