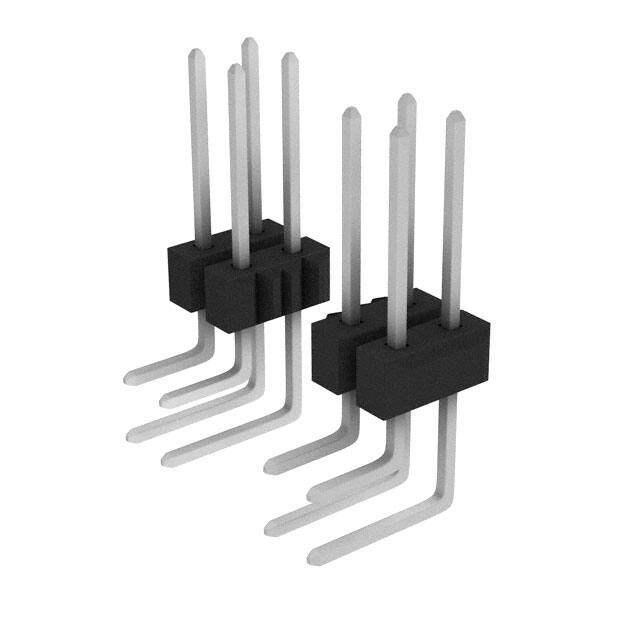

0717640330

Specifications

Min. Çalışma Sıcaklığı

-40°C

Contact Shape

Square

Number Of Positions Loaded

All

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Parça Durumu

Active

Shrouding

Unshrouded

Insulation Height

0.200 5.08mm

Insulation Materials

Thermoplastic

Connector Type

Header, Breakaway

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Depth

15.57mm

Seri

C-Grid 71764

Uzunluk

38.1mm

Orientation

Right Angle

Pozisyon Sayısı

30

Contact Finish Mating

Tin

Ambalaj

Tube

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Contact Materials

Copper Alloy

Contact Lengthmating

0.320 8.13mm

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Contact Length Post

0.110 2.79mm

Housing Color

Black

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Contact Finish Thickness Mating

150.0μin 3.81μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Fastening Type

Push-Pull

Maks. Çalışma Sıcaklığı

105°C

Fabrika Tedarik Süresi

8 Weeks

Pitch Mating

0.100 2.54mm
