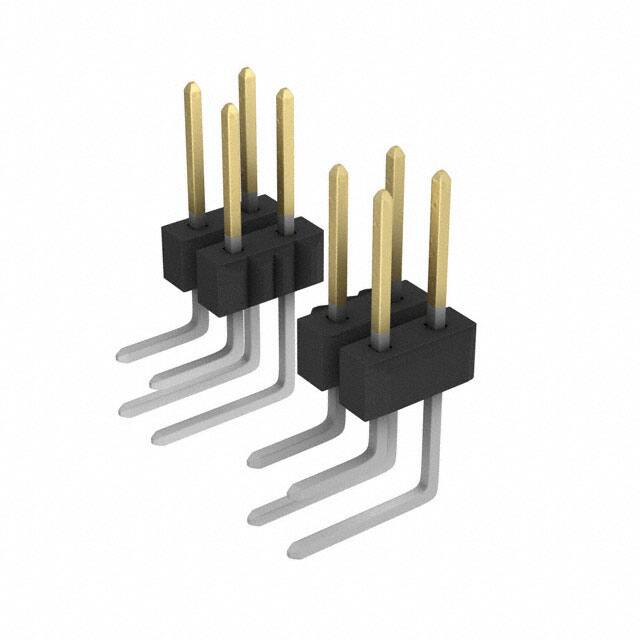

0717640116

Specifications

Contact Lengthmating

0.240 6.10mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Contact Materials

Copper Alloy

Terminal

Solder

Contact Length Post

0.110 2.79mm

Row Spacing Mating

0.100 (2.54mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

15.0μin 0.38μm

Fastening Type

Push-Pull

Contact Type

Male Pin

Pitch Mating

0.100 2.54mm

Insulation Color

Black

Contact Shape

Square

Number Of Positions Loaded

All

Shrouding

Unshrouded

Parça Durumu

Active

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Insulation Height

0.200 5.08mm

Connector Type

Header, Breakaway

Insulation Materials

Thermoplastic

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Post

74.8μin 1.90μm

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Seri

C-Grid 71764

Contact Finish Mating

Gold

Pozisyon Sayısı

16

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Ambalaj

Tube
