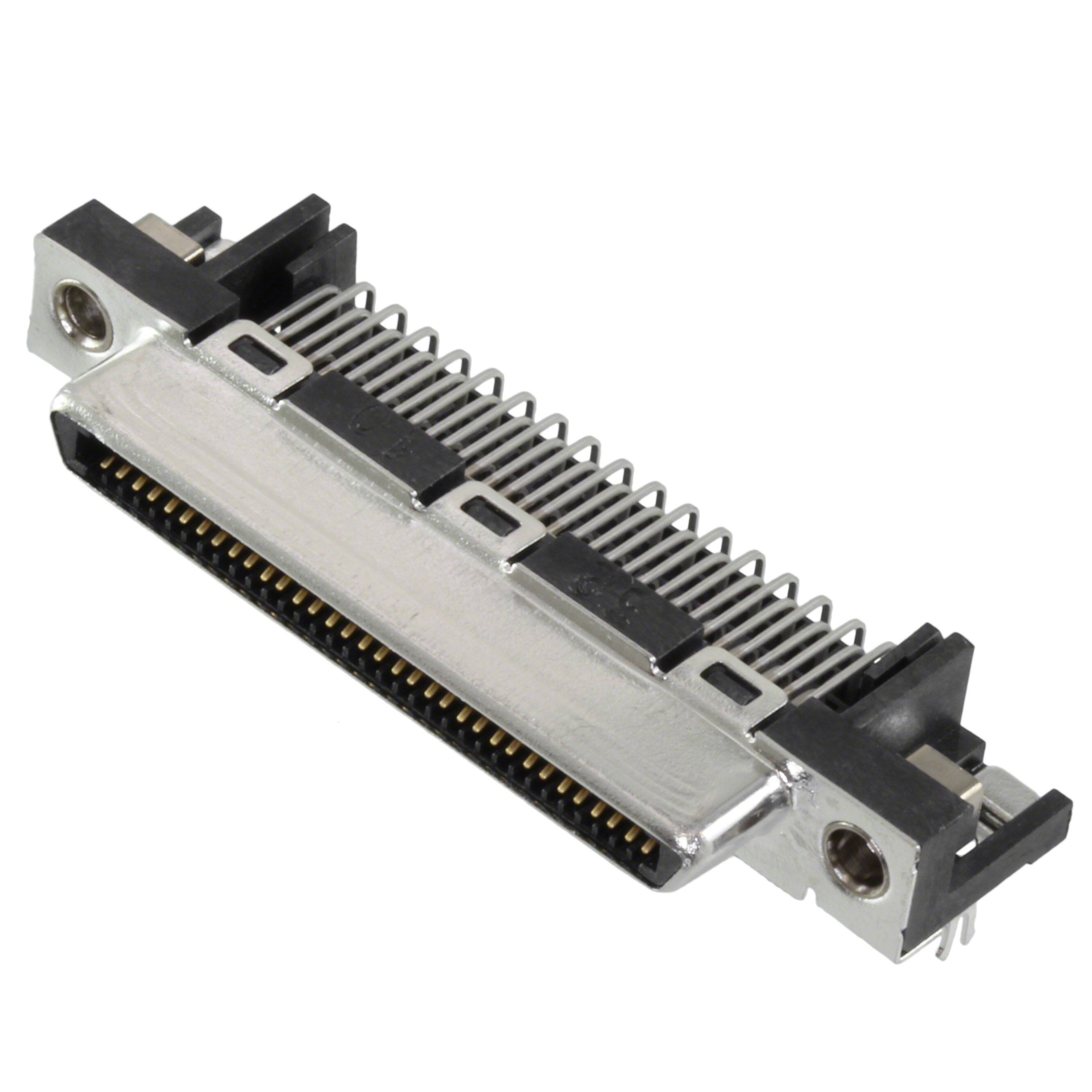

0714300268

Specifications

Mil Conformance

NO

Shell Material

POLYETHYLENE

Min. Çalışma Sıcaklığı

-55°C

Contact Finish

Gold

Filter Feature

NO

Option

GENERAL PURPOSE

Din Conformance

NO

Montaj

Through Hole

Kurşunsuz Kodu

yes

Contact Materials

NOT SPECIFIED

Housing Material

Thermoplastic

Renk

Black

Terminal

Solder

Number Of Contacts

68

Max Voltage Rating Ac

30V

Empty Shell

NO

Orientation

Right Angle

Akım Değeri

500mA

Montaj Tipi

Through Hole, Right Angle

Halogen Free

Low Halogen

Voltage Rated Ac

30V

Mixed Contacts

NO

Depth

14.65mm

Tip

SCSI+, VHDCI

Contact Finish Thickness

Flash

Max Voltage Rating Dc

3.03kV

Uzunluk

42.7mm

Connector Type

Receptacle

Gender

Female

Iec Conformance

NO

Ul Flammability Code

94V-0

Flammability Rating

UL94 V-0

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Sıra Sayısı

2

Maks. Çalışma Sıcaklığı

85°C

Seri

Ultra+ VHDCI 71430

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Style

Outer Shroud Contacts

Lead Pitch

800μm
