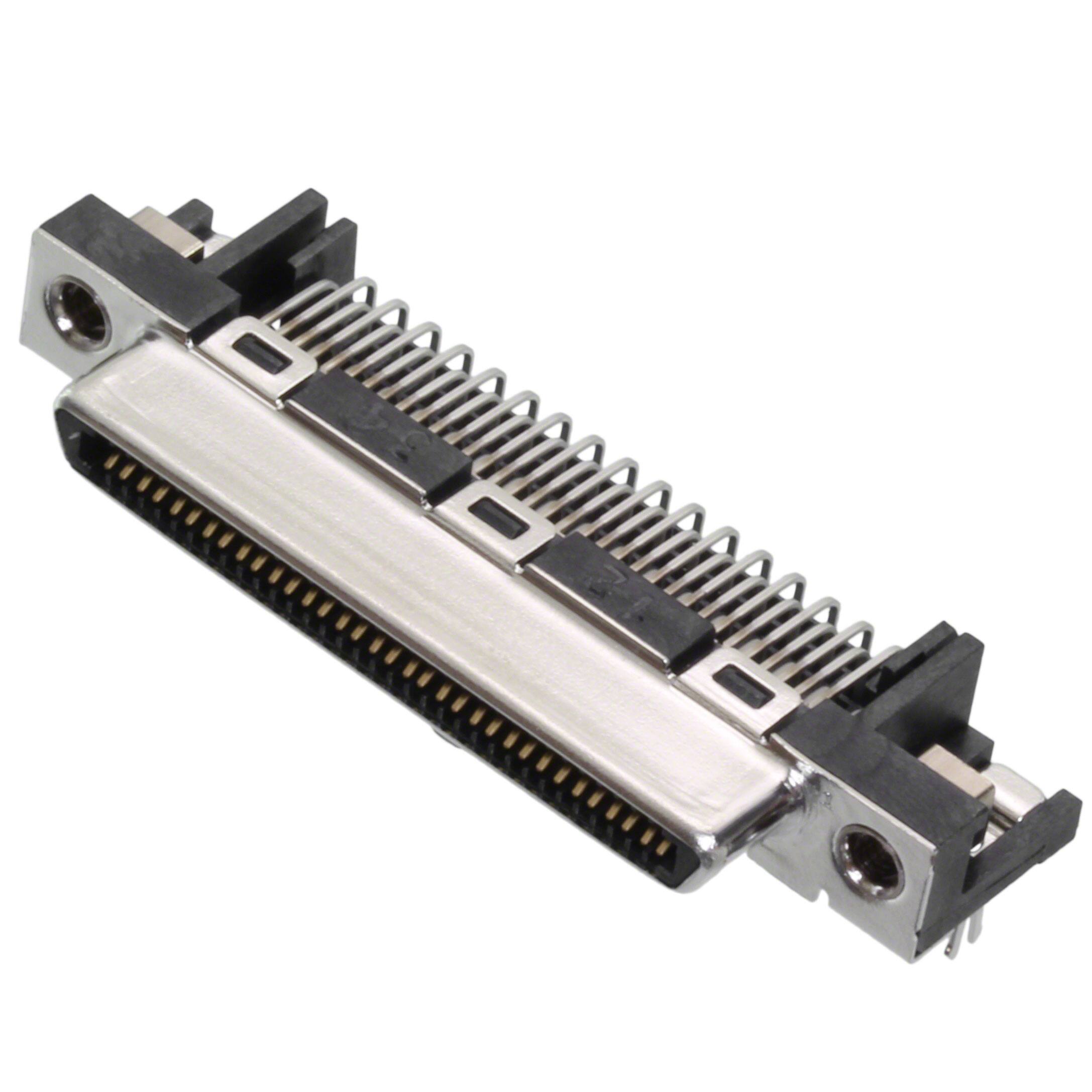

Specifications
- RoHS Durumu
- Non-RoHS Compliant
- Flange Feature
- Housing/Shell (M2.6)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Ports
- 1
- Reach Svhc
- No SVHC
- Özellikler
- Board Lock, Shielded
- Pitch
- 1.6mm
- Seri
- Ultra+ VHDCI 71430
- Maks. Çalışma Sıcaklığı
- 85°C
- Sıra Sayısı
- 2
- Lead Pitch
- 800μm
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Connector Style
- Outer Shroud Contacts
- Iec Conformance
- NO
- Gender
- Female
- Connector Type
- Receptacle
- Uzunluk
- 42.7mm
- Fabrika Tedarik Süresi
- 10 Weeks
- Parça Durumu
- Active
- Flammability Rating
- UL94 V-0
- Ul Flammability Code
- 94V-0
- Tip
- SCSI+, VHDCI
- Depth
- 14.65mm
- Mixed Contacts
- NO
- Max Voltage Rating Dc
- 3.03kV
- Contact Finish Thickness
- Flash
- Akım Değeri
- 500mA
- Orientation
- Right Angle
- Empty Shell
- NO
- Max Voltage Rating Ac
- 30V
- Number Of Contacts
- 68
- Voltage Rated Ac
- 30V
- Montaj Tipi
- Through Hole, Right Angle
- Housing Material
- Thermoplastic
- Terminal
- Solder
- Renk
- Black
- Radyasyon Dayanımı
- No
- Montaj
- Through Hole
- Contact Materials
- Brass
- Insulation Resistance
- 500MOhm
