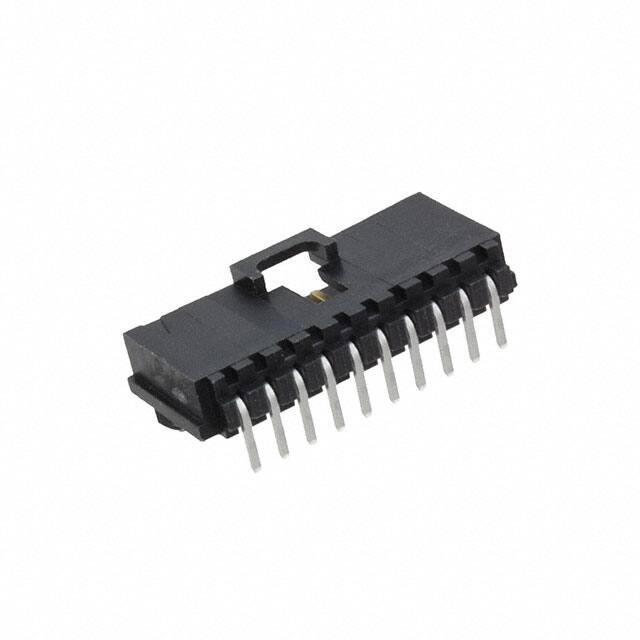

0705550079

Specifications

Style

Board to Cable/Wire

Contact Shape

Square

Voltage Rated Dc

250V

Orientation

Right Angle

Pozisyon Sayısı

10

Ambalaj

Tube

Number Of Positions Loaded

All

Material

Brass

Contact Type

Male Pin

Özellikler

Board Guide

Contact Finish Post

Tin

Montaj

Through Hole

Uzunluk

28.85mm

Shrouding

Shrouded - 4 Wall

Lead Pitch

2.54mm

Depth

13.59mm

Insulation Resistance

1GOhm

Akım Değeri

3A

Parça Durumu

Active

Fastening Type

Latch Holder

Number Of Circuits

9

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.130 3.30mm

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Terminal

Solder

Connector Type

Header

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Applications

Automotive, General Purpose, Industrial, Medical

Insulation Materials

Polyester, Glass Filled

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Seri

SL 70555

Fabrika Tedarik Süresi

6 Weeks

Housing Color

Black

Insulation Height

0.215 5.45mm
