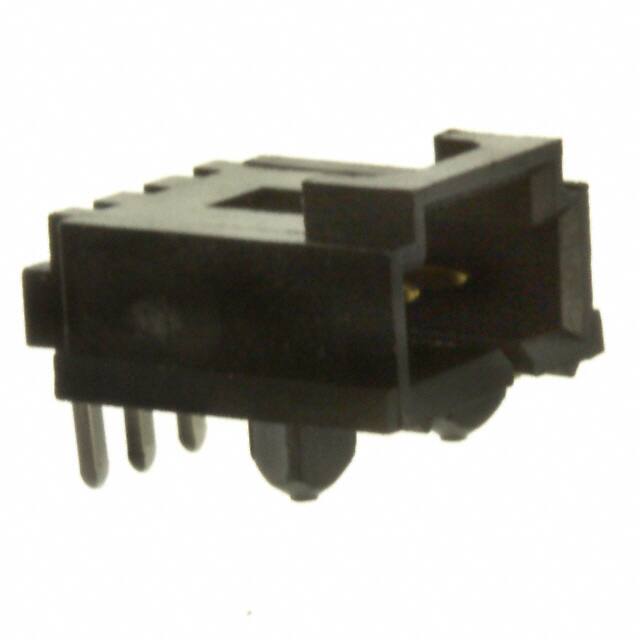

0705550037

Specifications

Insulation Color

Black

Contact Materials

Phosphor Bronze

Insulation Height

0.215 5.45mm

Mil Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Post

74.8μin 1.90μm

Filter Feature

NO

Additional Feature

POLARIZED, SHROUDED, SL

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Seri

SL 70555

RoHS Durumu

ROHS3 Compliant

Din Conformance

NO

Fabrika Tedarik Süresi

5 Weeks

Connector Type

Header

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

15.0μin 0.38μm

Applications

Automotive, General Purpose, Industrial, Medical

Insulation Materials

Polyester, Glass Filled

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Contact Length Post

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.100 2.54mm

Terminal

Solder

Contact Finish Post

Tin

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Fastening Type

Latch Holder

Ul Flammability Code

94V-0

Pozisyon Sayısı

3

Ambalaj

Tube

Number Of Positions Loaded

All

Contact Type

Male Pin

Nominal Gerilim

250V

Terminal Adımı

2.54mm

Özellikler

Board Guide

ECCN Kodu

EAR99

Iec Conformance

NO
