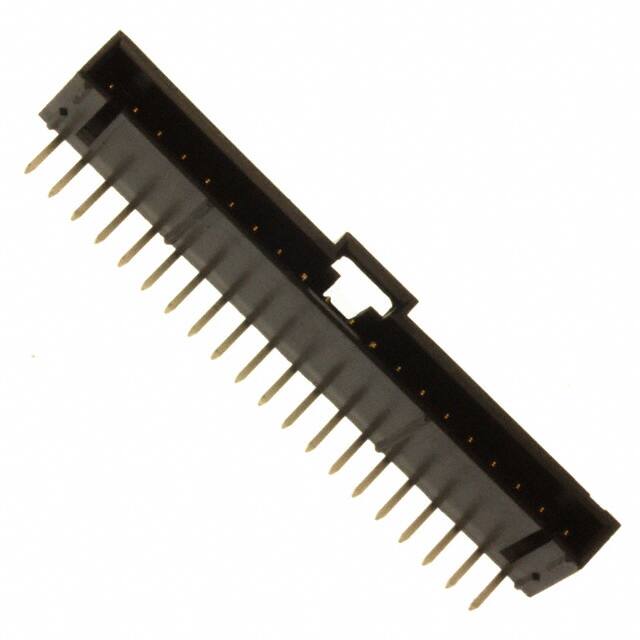

0705530019

Specifications

Voltage Rated Dc

250V

Orientation

Right Angle

Contact Shape

Square

Style

Board to Cable/Wire

Material

Brass

Number Of Positions Loaded

All

Ambalaj

Tube

Pozisyon Sayısı

20

Kurşunsuz

Lead Free

Contact Type

Male Pin

Montaj

Through Hole

Contact Finish Post

Tin

Akım Değeri

3A

Number Of Circuits

19

Fastening Type

Latch Holder

Parça Durumu

Active

Depth

13.59mm

Lead Pitch

2.54mm

Shrouding

Shrouded - 4 Wall

Uzunluk

53.35mm

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Contact Length Post

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Çalışma Sıcaklığı

-40°C~105°C

Connector Type

Header

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Insulation Materials

Polyester, Glass Filled

Applications

Automotive, General Purpose, Industrial, Medical

Contact Finish Thickness Mating

15.0μin 0.38μm

Material Flammability Rating

UL94 V-0

Gender

Male

Sıra Sayısı

1

Fabrika Tedarik Süresi

7 Weeks

Housing Color

Black

RoHS Durumu

ROHS3 Compliant

Seri

SL 70553

Insulation Height

0.215 5.45mm
