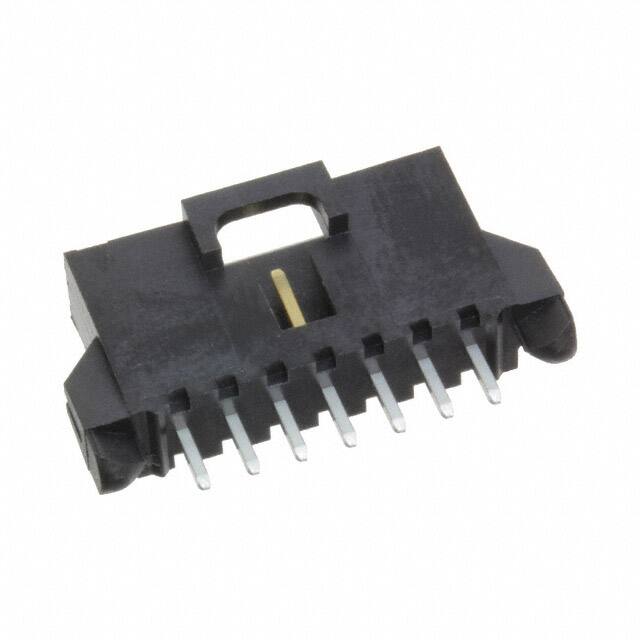

0705450076

Specifications

Connector Type

Header

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Applications

Automotive, General Purpose, Industrial, Medical

Insulation Materials

Polyester, Glass Filled

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Seri

SL 70545

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

8 Weeks

Insulation Height

0.465 11.80mm

Montaj Tipi

Through Hole

Contact Finish Thickness Post

74.8μin 1.90μm

Insulation Color

Black

Contact Materials

Phosphor Bronze

Overall Contact Length

0.470 11.94mm

Style

Board to Cable/Wire

Contact Shape

Square

Pozisyon Sayısı

7

Ambalaj

Tube

Number Of Positions Loaded

All

Contact Type

Male Pin

Nominal Gerilim

250V

Özellikler

Board Guide

Contact Finish Post

Tin

Shrouding

Shrouded - 4 Wall

Fastening Type

Latch Holder

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.130 3.30mm

Pitch Mating

0.100 2.54mm

Terminal

Solder
