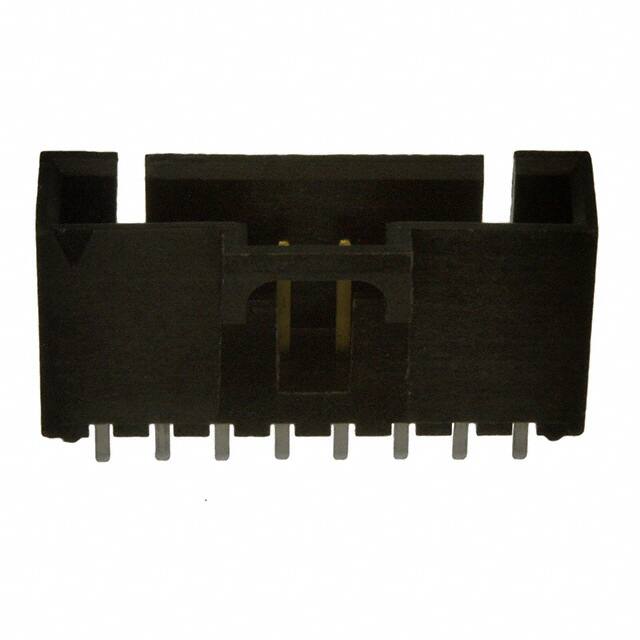

0705430112

Specifications

Seri

SL 70543

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

5 Weeks

Din Conformance

NO

Additional Feature

POLARIZED, SHROUDED

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Insulation Materials

Polyester, Glass Filled

Applications

Automotive, General Purpose, Industrial, Medical

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Connector Type

Header

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Insulation Color

Black

Contact Finish Thickness Post

74.8μin 1.90μm

Mil Conformance

NO

Montaj Tipi

Through Hole

Filter Feature

NO

Insulation Height

0.465 11.80mm

Contact Type

Male Pin

Nominal Gerilim

250V

Terminal Adımı

2.54mm

Number Of Positions Loaded

All

Pozisyon Sayısı

8

Ambalaj

Tube

Contact Shape

Square

Overall Contact Length

0.470 11.94mm

Iec Conformance

NO

Style

Board to Cable/Wire

Terminal

Solder

Contact Length Post

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.100 2.54mm

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Fastening Type

Latch Holder
