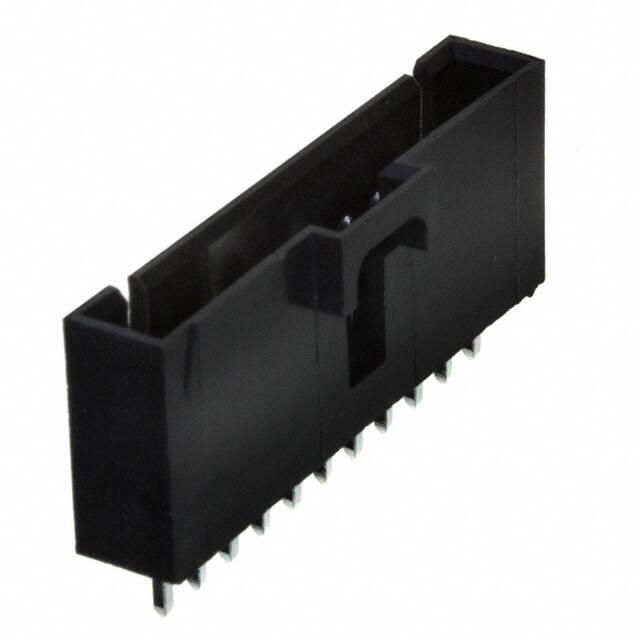

0705430045

Specifications

Pitch Mating

0.100 2.54mm

Voltage Rated Dc

250V

Insulation Materials

Polyester, Glass Filled

Connector Type

Header

Housing Material

Polyester

Lead Pitch

2.54mm

Applications

Automotive, General Purpose, Industrial, Medical

Montaj

Through Hole

Fabrika Tedarik Süresi

5 Weeks

Parça Durumu

Active

Number Of Positions Loaded

All

Ambalaj

Tube

Contact Resistance

30mOhm

Akım Değeri

3A

Contact Finish Thickness Mating

150.0μin 3.81μm

Terminal

Solder

Overall Contact Length

0.470 11.94mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

150.0μin 3.81μm

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

Housing Color

Black

Contact Type

Male Pin

Pozisyon Sayısı

11

Orientation

Vertical

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Insulation Height

0.465 11.80mm

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Seri

SL 70543

Uzunluk

30.49mm

Contact Length Post

0.130 3.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material

Brass

Style

Board to Cable/Wire

Number Of Circuits

10

Contact Finish Mating

Tin
