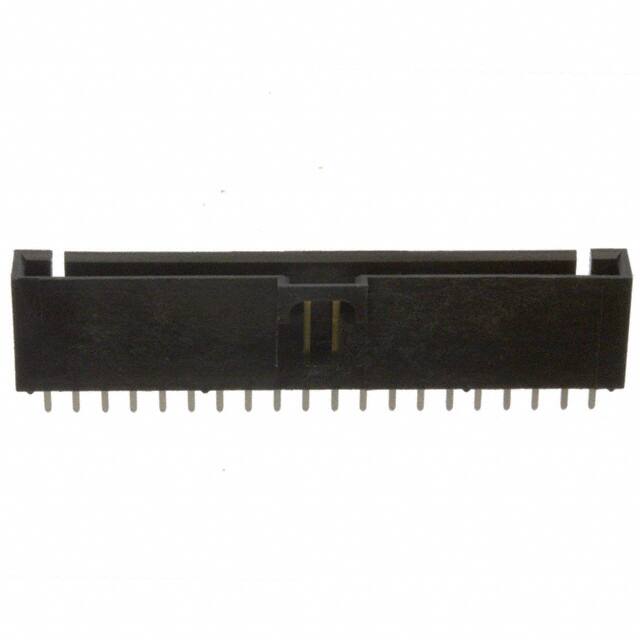

0705430019

Specifications

Insulation Materials

Polyester, Glass Filled

Applications

Automotive, General Purpose, Industrial, Medical

Connector Type

Header

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Ambalaj

Tube

Nominal Gerilim

250V

Parça Durumu

Active

Fabrika Tedarik Süresi

9 Weeks

RoHS Durumu

ROHS3 Compliant

Terminal

Solder

Overall Contact Length

0.470 11.94mm

Montaj Tipi

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Materials

Phosphor Bronze

Contact Finish Thickness Post

74.8μin 1.90μm

Contact Finish Thickness Mating

15.0μin 0.38μm

Pozisyon Sayısı

20

Sıra Sayısı

1

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Fastening Type

Latch Holder

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Insulation Height

0.465 11.80mm

Contact Length Post

0.130 3.30mm

Shrouding

Shrouded - 4 Wall

Seri

SL 70543

Style

Board to Cable/Wire

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square
